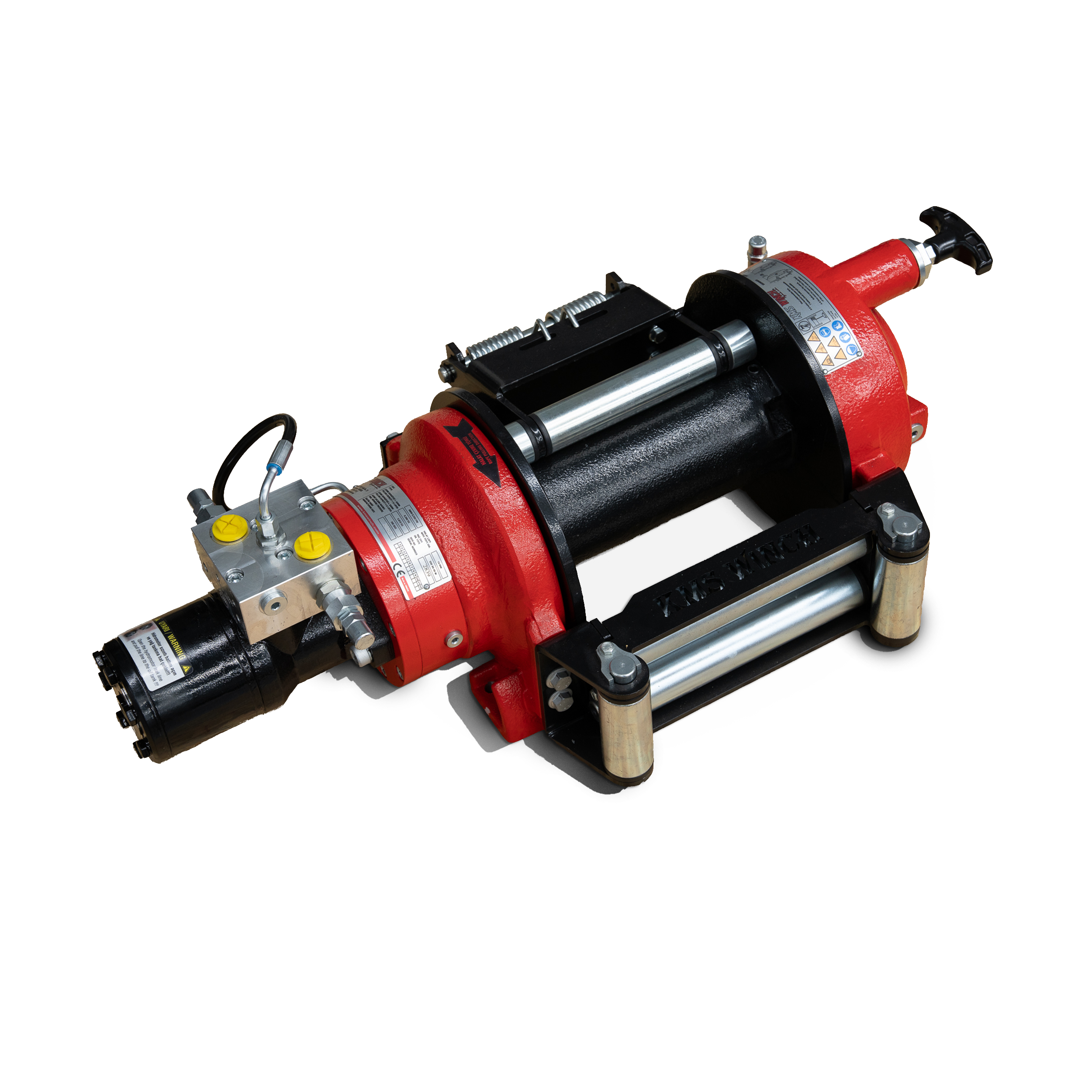

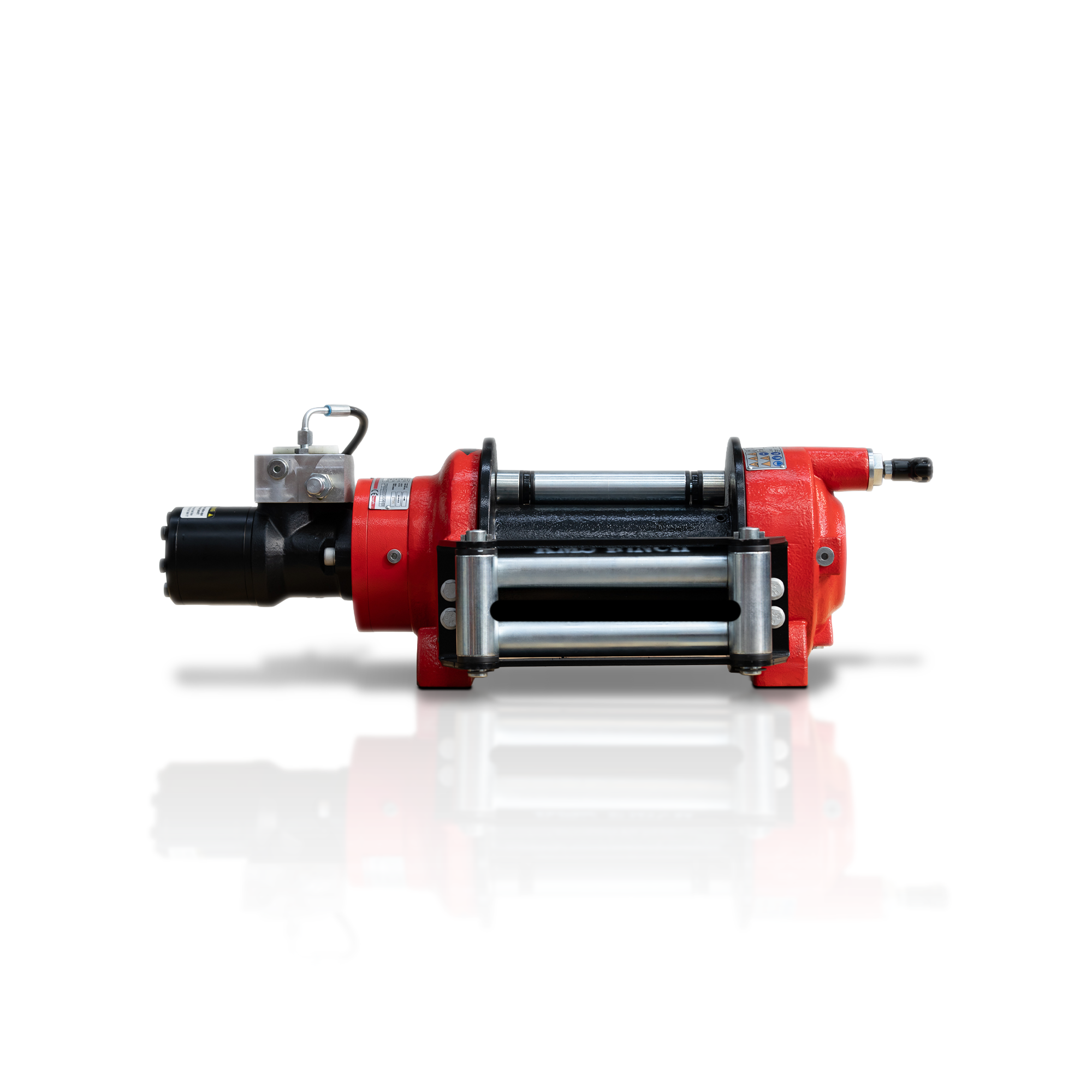

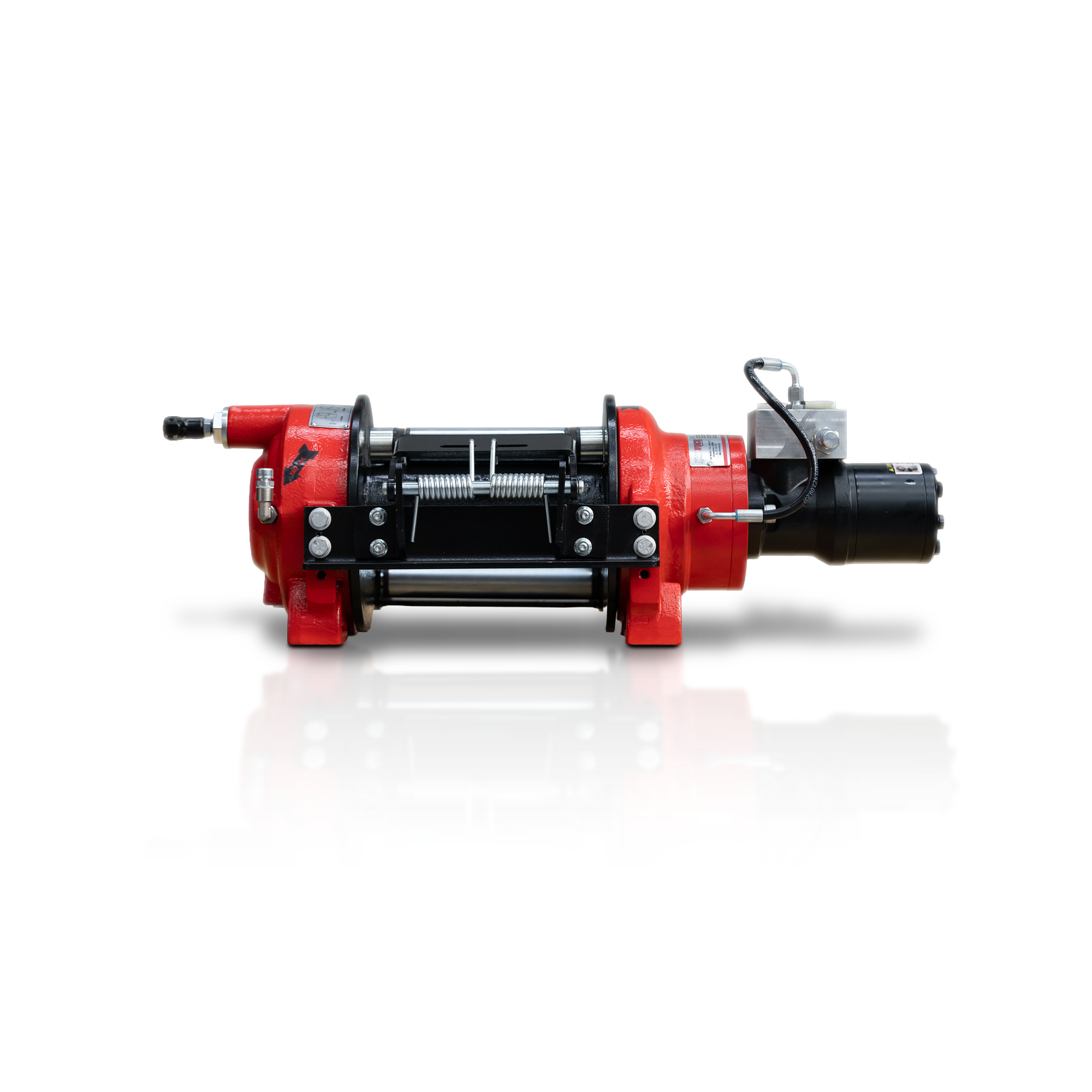

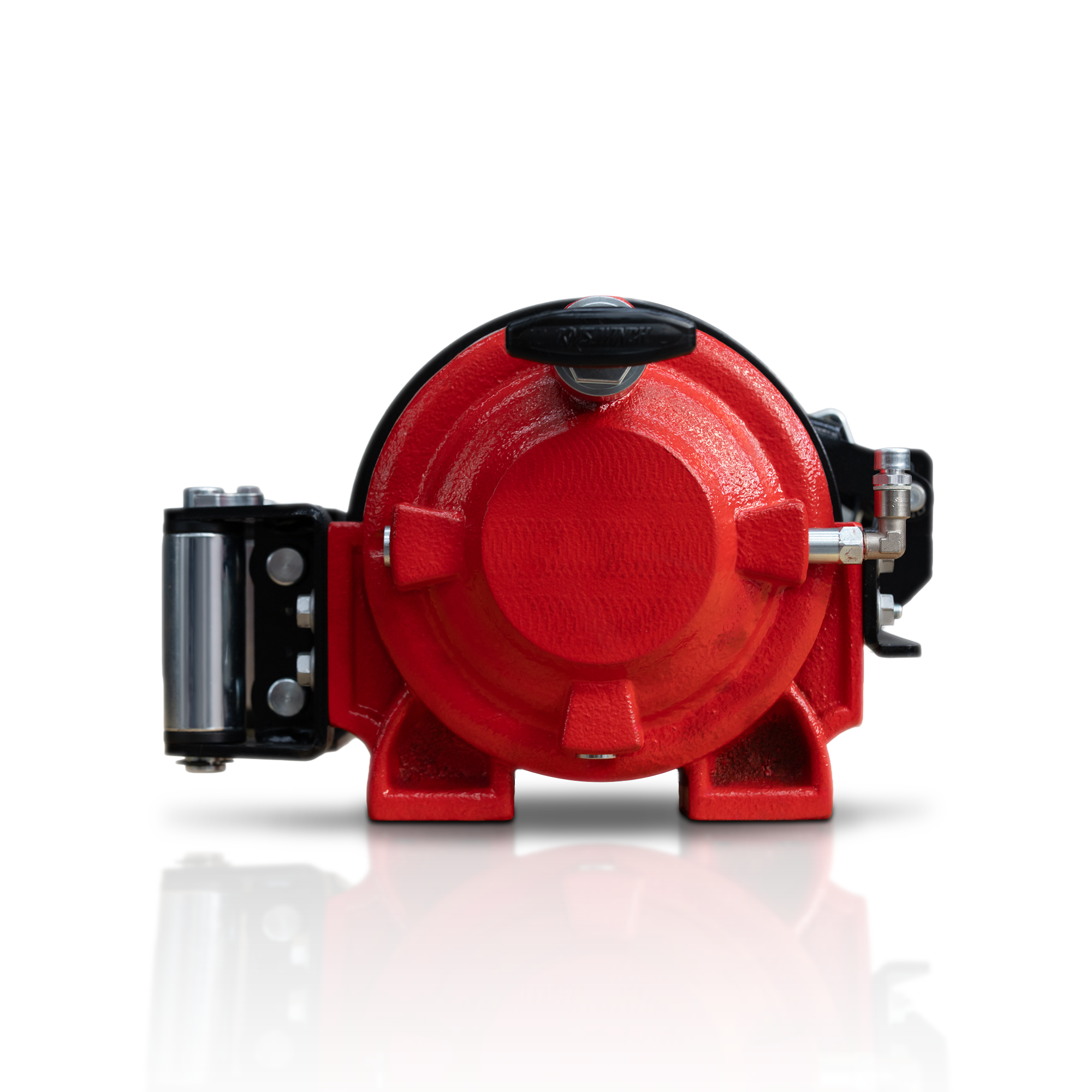

KMW 7.200 PW
EN 14492-1 COMPLIANT- High-strength, long-life steel construction.
- Planetary gearbox manufactured from special alloy steel and heat-treated for maximum strength and durability.
- Lightweight, compact and high-strength design.
- Hydraulic disc brake system capable of holding 100% of the rated load.
- Roller Fairlead and wire rope pressure roller supplied as standard.
- Manual clutch system supplied as standard.
- High-torque hydraulic motor for maximum performance and efficiency.
- Electrostatic powder coating for superior corrosion and rust resistance.
- Manufactured in compliance with the CE Machinery Directive 2006/42/EC.
- Designed and manufactured in accordance with EN 14492-1:2006 – Power Driven Winches
STANDARD
-
Wire Rope Pressure Roller
-
Roller Fairlead
-
Manual Clutch System
HYDRAULIC PORTS
G 1/2"
OPTIONAL
- IP67 / IP68 Protection Rating
- Pneumatic Clutch System
MOUNTING BOLTS
16 × M12 Grade 8.8 Mounting Bolts
Max. Pulling Force (kg / lbs)
7.200 kg (15840 lbs)
Max. Wire Rope Diameter (mm / in)
14 mm (3/9")
Max. Wire Rope Capacity (m / ft)
40 m (131 ft)
Hydraulic Motor Displacement (cc / in³)
315 cc (19 in³)
Max. Pump Flow Rate (L/min)
60 L
Gear Ratio
6 : 1
Max. Operating Pressure (bar / psi)
185 bar (2683 psi)
Recommended Gear Oil
80 w 90 - 0.75 L
Product Weight (kg / lbs)
78 kg (172 lbs)
| Wire Rope Layers | Pulling Capacity(kg/lbs) | Wire Rope Speed (m/min/ft/min) | Wire Rope Length (m / ft) |
|---|---|---|---|
| 1 | 7200/15840 | 11.4/37.4 | 6.6/21.6 |
| 2 | 5943/13075 | 12.7/41.6 | 14/45.9 |
| 3 | 5043/11095 | 14.1/46.2 | 22.1/72.4 |
| 4 | 4380/9636 | 15.5/50.8 | 31.1/101 |
| 5 | 3871/8516 | 16.9/55.4 | 40/131 |
Pulling Capacity
(kg / lbs)| Wire Rope Speed
(m/min / ft/min)| Wire Rope Capacity
(m / ft)
