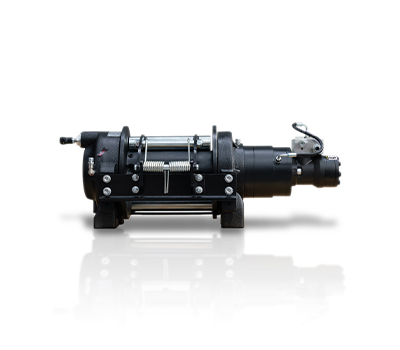

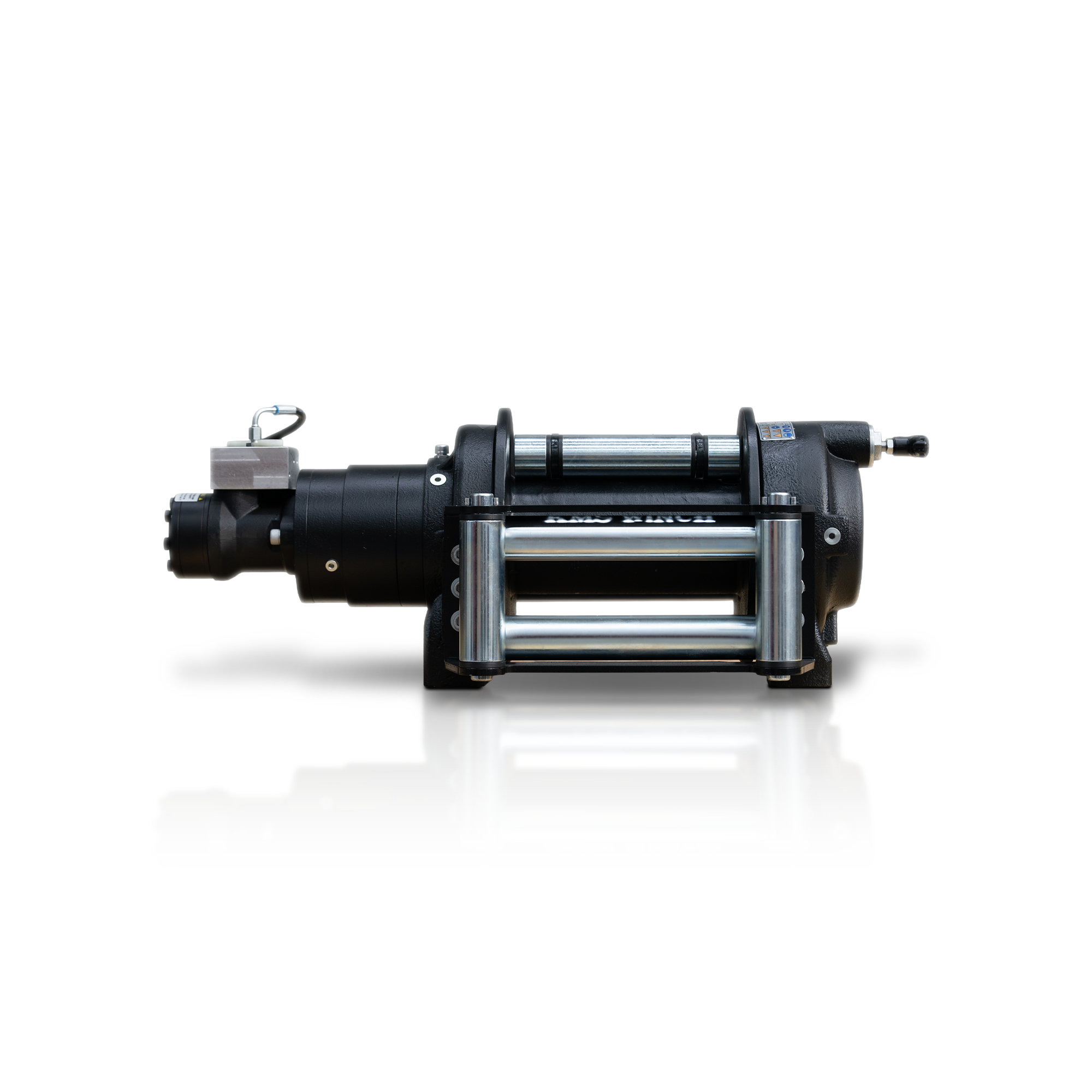

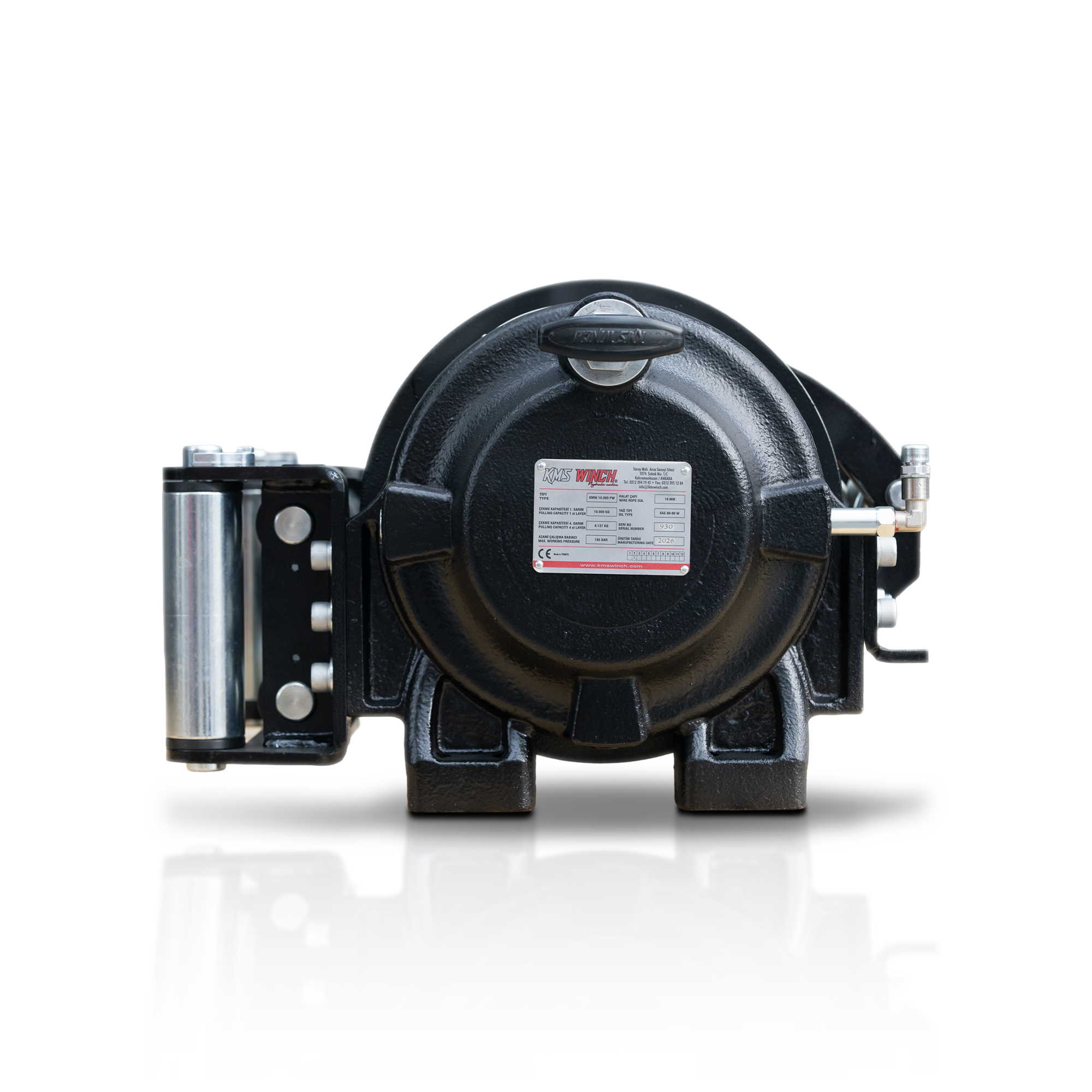

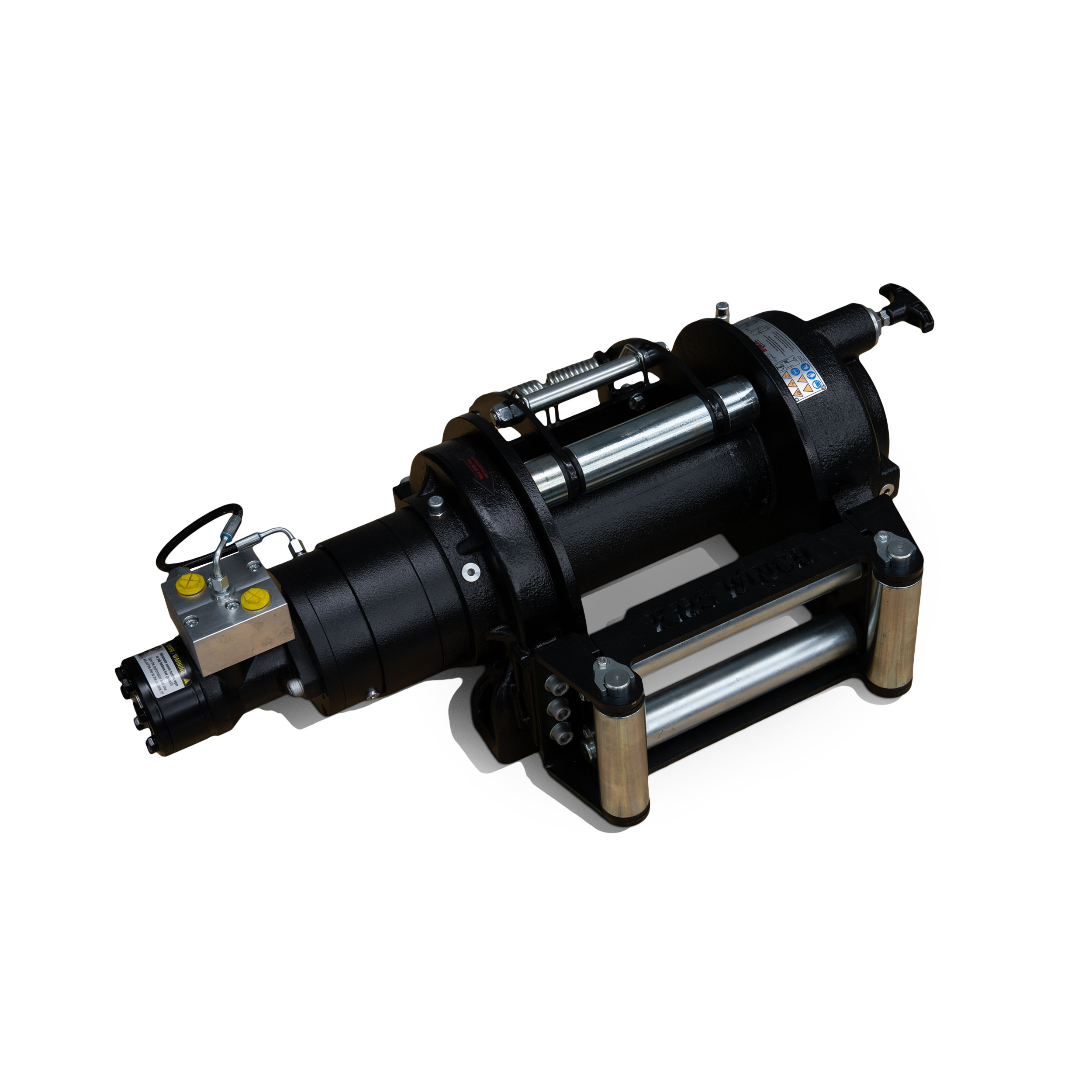

KMW 10.000 PW LONG
EN 14492-1 COMPLIANT- High-strength, long-life steel construction.
- Two-stage planetary gearbox manufactured from special alloy steel and heat-treated for maximum strength and durability.
- Lightweight, compact and high-strength design.
- Hydraulic disc brake system capable of holding 100% of the rated load.
- Roller Fairlead and wire rope pressure roller supplied as standard.
- Manual clutch system supplied as standard.
- High-torque hydraulic motor for maximum performance and efficiency.
- Epoxy primer and acrylic topcoat for superior corrosion and rust protection.
- Manufactured in compliance with the CE Machinery Directive 2006/42/EC.
- Designed and manufactured in accordance with EN 14492-1:2006 – Power Driven Winches.
STANDARD
- Wire Rope Pressure Roller
- Roller Fairlead
- Manual Clutch System
HYDRAULIC PORTS
G 1/2"
OPTIONAL
- IP67 / IP68 Protection Rating
- Pneumatic Clutch System
MOUNTING BOLTS
16 × M16 Grade 8.8 Mounting Bolts
Max. Pulling Force (kg / lbs)
10.000 kg (22000 lbs)
Max. Wire Rope Diameter (mm / in)
16 mm (7/11”)
Max. Wire Rope Capacity (m / ft)
60 m (196 ft)
Hydraulic Motor Displacement (cc / in³)
160 cc (10 in³)
Max. Pump Flow Rate (L/min)
60 L
Gear Ratio
21 : 1
Max. Operating Pressure (bar / psi)
185 bar (2683 psi)
Recommended Gear Oil
80 w 90 - 1 L
Product Weight (kg / lbs)
170 kg (374 lbs)
| Wire Rope Layers | Pulling Capacity(kg/lbs) | Wire Rope Speed (m/min/ft/min) | Wire Rope Length (m / ft) |
|---|---|---|---|
| 1 | 10000/22000 | 7.7/25 | 9.6/31 |
| 2 | 8272/18236 | 8.6/28 | 20.4/66 |
| 3 | 7206/15853 | 9.5/31 | 32.2/105 |
| 4 | 6273/13800 | 10.5/34 | 45.1/147 |
| 5 | 5553/12216 | 11.4/37 | 60/196 |
