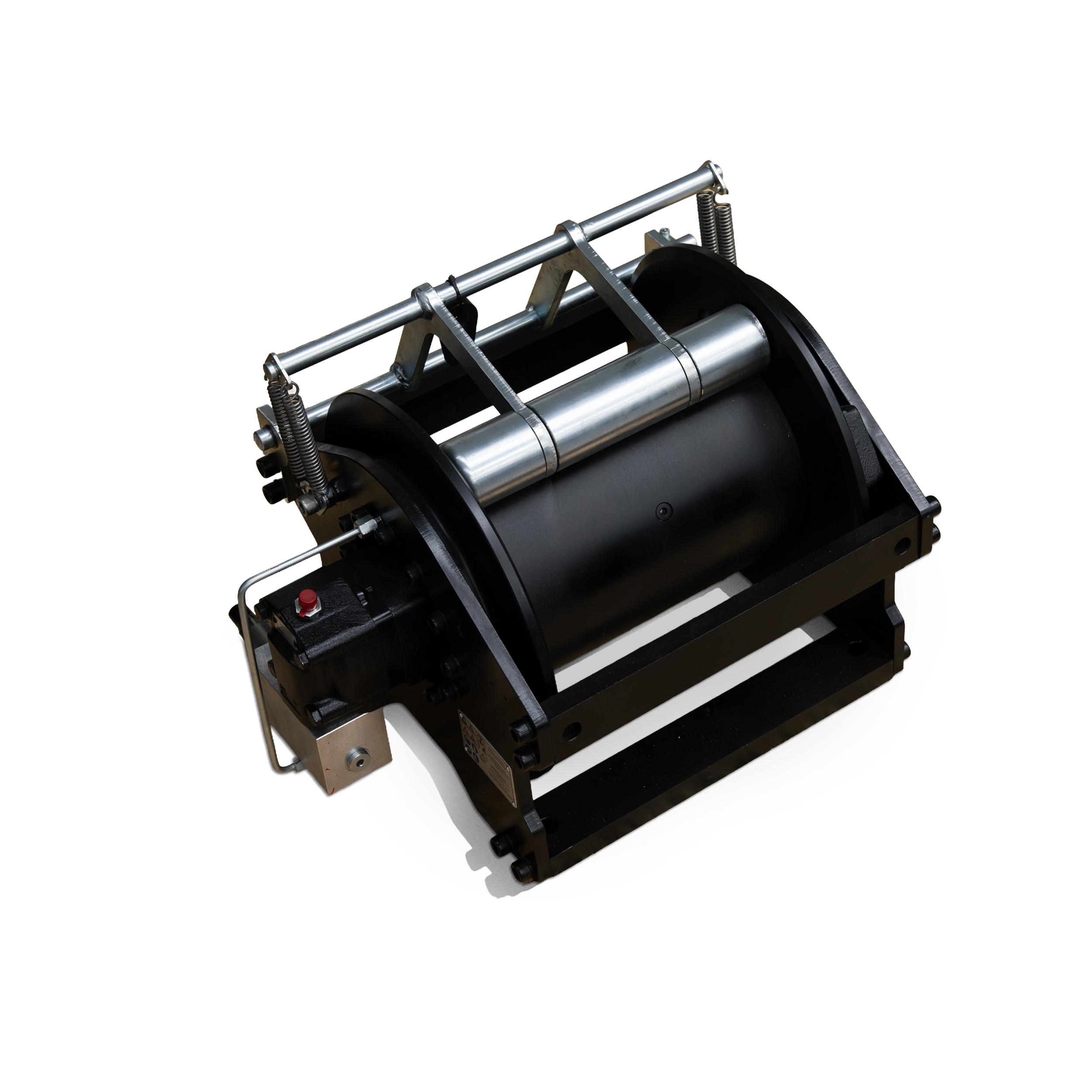

KMW 2.500 P-KW
EN 14492-1 COMPLIANT- High-strength, long-life steel construction.
- Planetary gearbox manufactured from special alloy steel and heat-treated for maximum strength and durability.
- Lightweight, compact and high-strength design.
- Hydraulic disc brake system capable of holding 100% of the rated load.
- Wire rope pressure roller.
- High wire rope capacity.
- High-torque hydraulic motor for maximum performance and efficiency.
- Epoxy primer and acrylic topcoat for superior corrosion and rust protection.
- Manufactured in compliance with the CE Machinery Directive 2006/42/EC.
- Designed and manufactured in accordance with EN 14492-1:2006 – Power Driven Winches.
STANDARD
Wire Rope Pressure Roller
HYDRAULIC PORTS
G 3/4"-1/2"
OPTIONAL
- IP67 / IP68 Protection Rating
- IP67 / IP68 Micro Switch
MOUNTING BOLTS
4 × M12 Grade 8.8 Mounting Bolts
Hoisting Capacity (kg / lbs)
2.500 kg (5511 lbs)
Max. Wire Rope Diameter (mm / in)
12 mm (1/2")
Max. Wire Rope Capacity (m / ft)
97 m (318 ft)
Hydraulic Motor Displacement (cc / in³)
250 cc (15 in³)
Max. Pump Flow Rate (L/min)
75 L
Gear Ratio
6 : 1
Max. Operating Pressure (bar / psi)
190 bar (2755 psi)
Recommended Gear Oil
80-90 w - 2 L
Product Weight (kg / lbs)
128 kg (282 lbs)
| Wire Rope Layers | Hoisting Capacity (kg/lbs) | Wire Rope Speed (m/min/ft/min) | Wire Rope Length (m / ft) |
|---|---|---|---|
| 1 | 2500/5511 | 32.8/107 | 15.8/51 |
| 2 | 2315/5103 | 34.7/114 | 33.4/109 |
| 3 | 2109/4649 | 36.6/120 | 52.8/173 |
| 4 | 1937/4270 | 38.5/126 | 74/242 |
| 5 | 1791/3948 | 40.4/132 | 97/318 |
