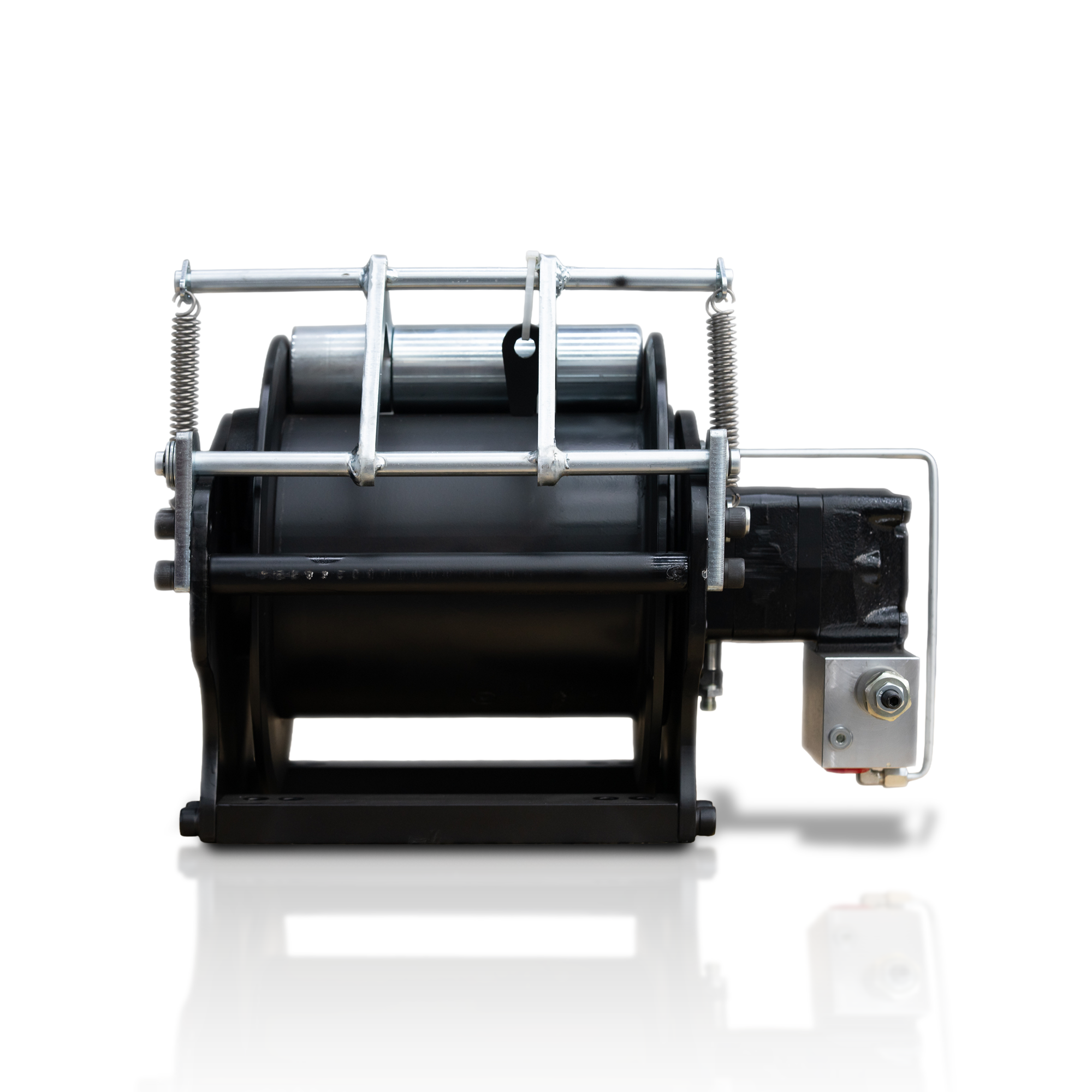

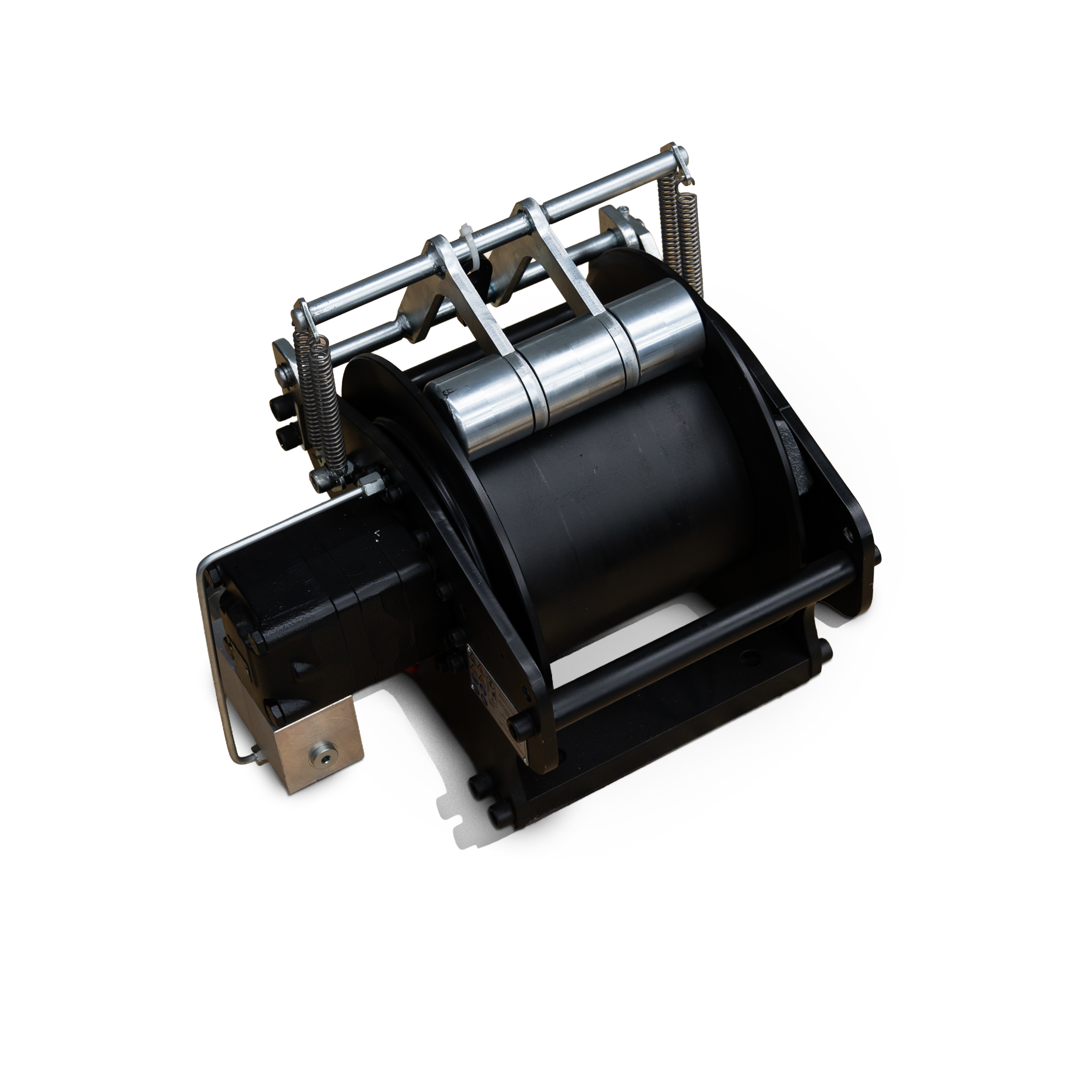

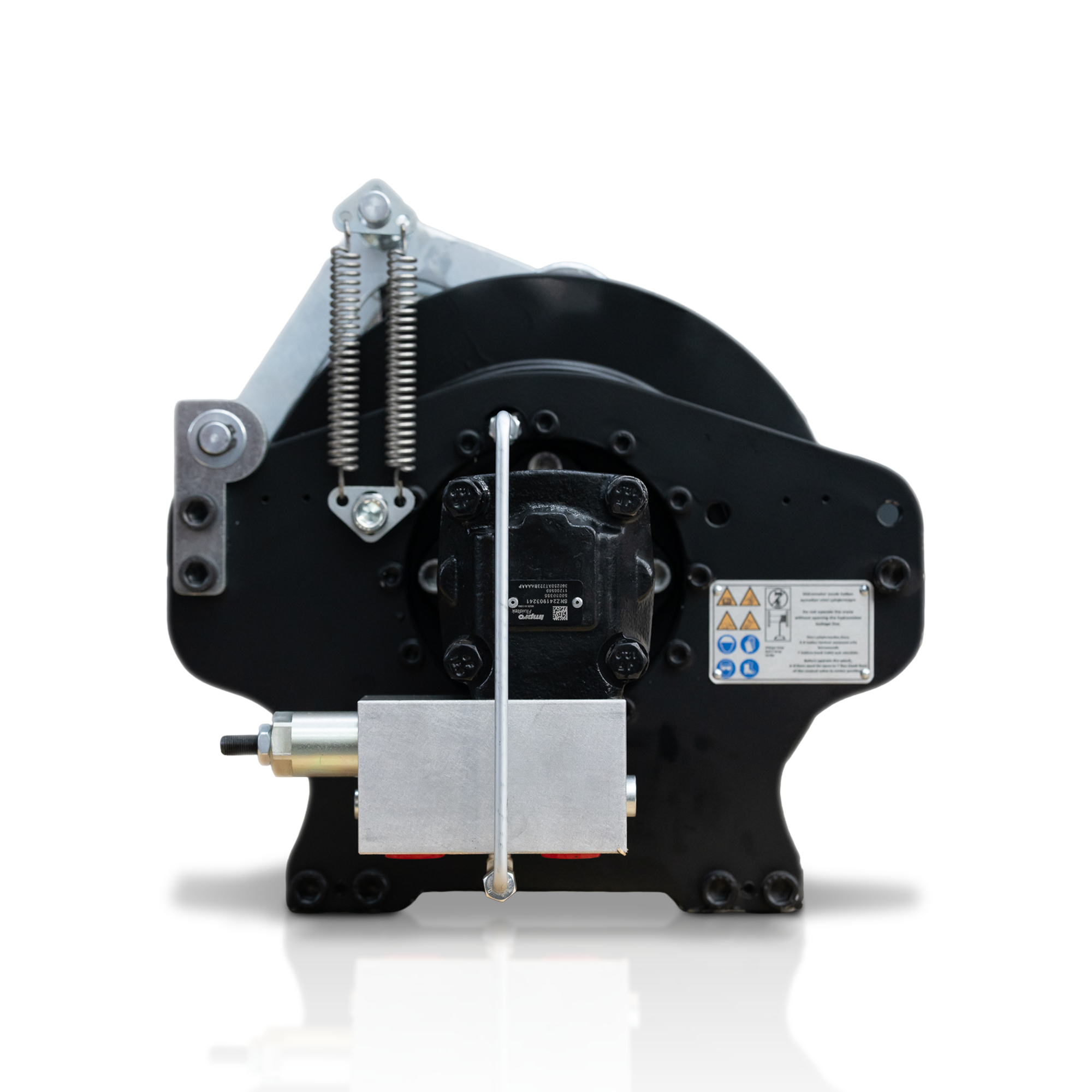

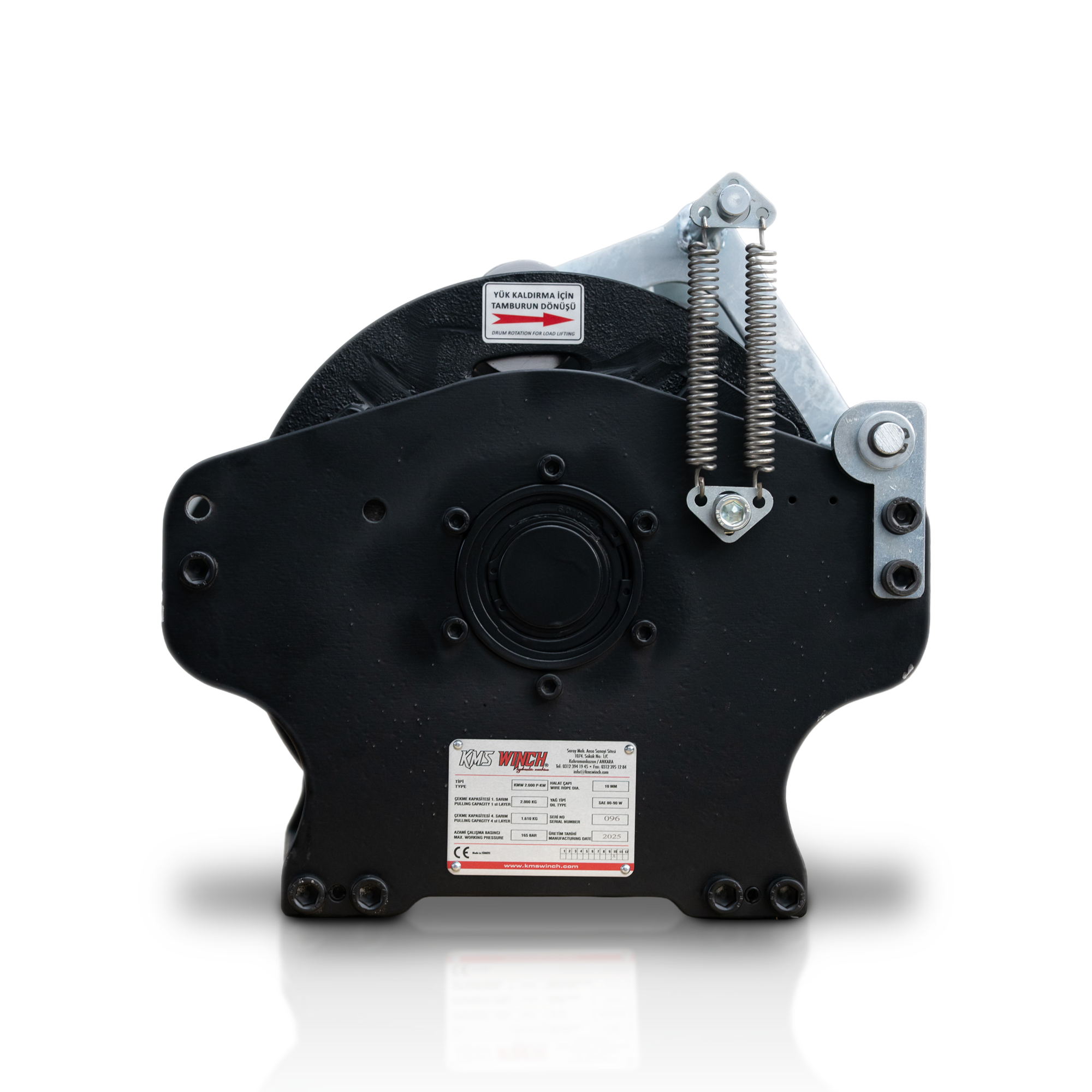

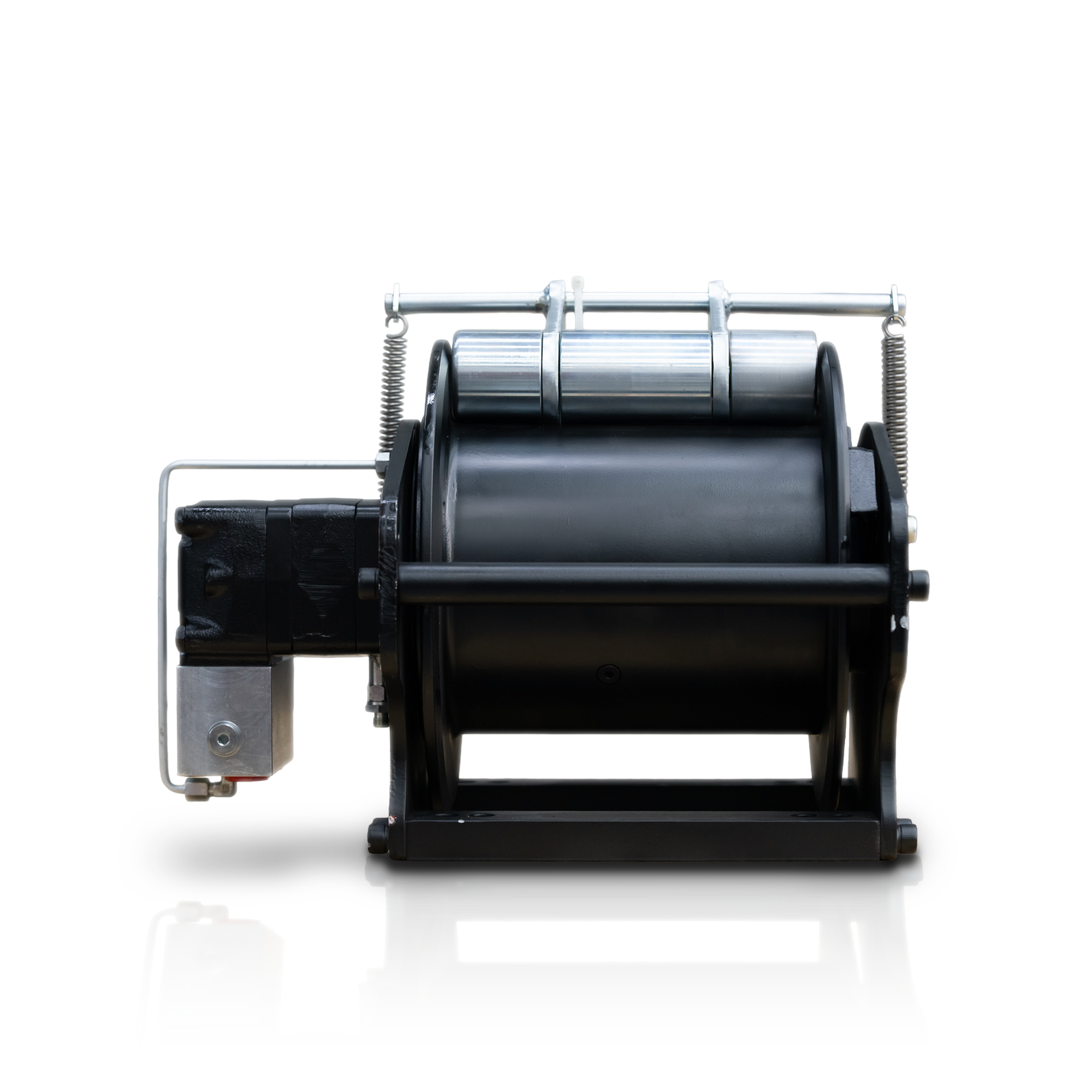

KMW 2.000 P-KW
EN 14492-1 COMPLIANT- High-strength, long-life steel construction.
- Planetary gearbox manufactured from special alloy steel and heat-treated for maximum strength and durability.
- Lightweight, compact and high-strength design.
- Hydraulic disc brake system capable of holding 100% of the rated load.
- Wire rope pressure roller.
- High wire rope capacity.
- High-torque hydraulic motor for maximum performance and efficiency.
- Epoxy primer and acrylic topcoat for superior corrosion and rust protection.
- Manufactured in compliance with the CE Machinery Directive 2006/42/EC.
- Designed and manufactured in accordance with EN 14492-1:2006 – Power Driven Winches.
STANDARD
Wire Rope Pressure Roller
HYDRAULIC PORTS
G 3/4" - 1/2"
OPTIONAL
- IP67 / IP68 Protection Rating
- IP67 / IP68 Micro Switch
MOUNTING BOLTS
4 × M12 Grade 8.8 Mounting Bolts
Hoisting Capacity (kg / lbs)
2.000 kg (4409 lbs)
Max. Wire Rope Diameter (mm / in)
10 mm (3/8")
Max. Wire Rope Capacity (m / ft)
82 m (269 ft)
Hydraulic Motor Displacement (cc / in³)
250 cc (15 in³)
Max. Pump Flow Rate (L/min)
75 L
Gear Ratio
5 : 1
Max. Operating Pressure (bar / psi)
175 bar (2538 psi)
Recommended Gear Oil
80-90 w - 2 L
Product Weight (kg / lbs)
84 kg (185 lbs)
| Wire Rope Layers | Hoisting Capacity (kg/lbs) | Wire Rope Speed (m/min/ft/min) | Wire Rope Length (m / ft) |
|---|---|---|---|
| 1 | 2000/4400 | 35/114.8 | 14.8/48.5 |
| 2 | 1860/4092 | 37/121.3 | 30.4/99.7 |
| 3 | 1710/3762 | 38.7/127 | 46.7/153 |
| 4 | 1580/3476 | 40.4/132.5 | 63.8/209 |
| 5 | 1470/3234 | 42.2/138.4 | 82/269 |
