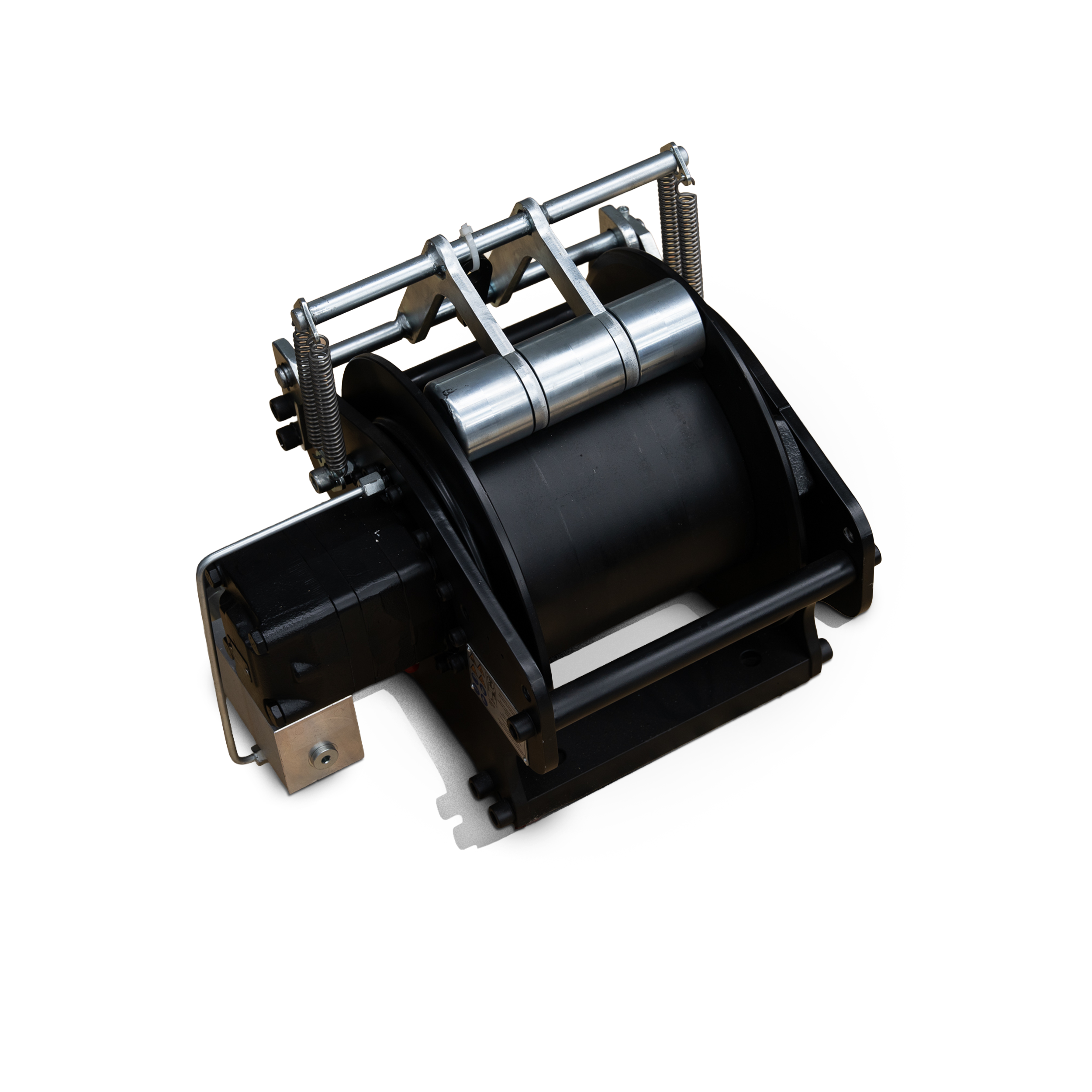

KMW 1.600 P-KW
EN 14492-1 COMPLIANT- High-strength, long-life steel construction.
- Planetary gearbox manufactured from special alloy steel and heat-treated for maximum strength and durability.
- Lightweight, compact and high-strength design.
- Hydraulic disc brake system capable of holding 100% of the rated load.
- Wire rope pressure roller.
- High wire rope capacity.
- High-torque hydraulic motor for maximum performance and efficiency.
- Epoxy primer and acrylic topcoat for superior corrosion and rust protection.
- Manufactured in compliance with the CE Machinery Directive 2006/42/EC.
- Designed and manufactured in accordance with EN 14492-1:2006 – Power Driven Winches.
STANDARD
Wire Rope Pressure Roller
HYDRAULIC PORTS
G 3/4" - 1/2"
OPTIONAL
- IP67 / IP68 Protection Rating
- IP67 / IP68 Micro Switch
MOUNTING BOLTS
4 × M12 Grade 8.8 Mounting Bolts
Hoisting Capacity (kg / lbs)
1.600 kg (3520 lbs)
Max. Wire Rope Diameter (mm / in)
10 mm (3/8")
Max. Wire Rope Capacity (m / ft)
67 m (220 ft)
Hydraulic Motor Displacement (cc / in³)
200 cc (12 in³)
Max. Pump Flow Rate (L/min)
75 L
Gear Ratio
5 : 1
Max. Operating Pressure (bar / psi)
190 bar (2610 psi)
Recommended Gear Oil
80 w 90 - 2 L
Product Weight (kg / lbs)
78 kg (172 lbs)
| Wire Rope Layers | Hoisting Capacity (kg/lbs) | Wire Rope Speed (m/min/ft/min) | Wire Rope Length (m / ft) |
|---|---|---|---|
| 1 | 1600/3520 | 47/154 | 12.3/40 |
| 2 | 1487/3271 | 50/164 | 25.2/82 |
| 3 | 1367/3000 | 52/170 | 38.7/126 |
| 4 | 1265/2783 | 54.5/178 | 52.8/173 |
| 5 | 1177/2589 | 56.9/186 | 67/220 |
