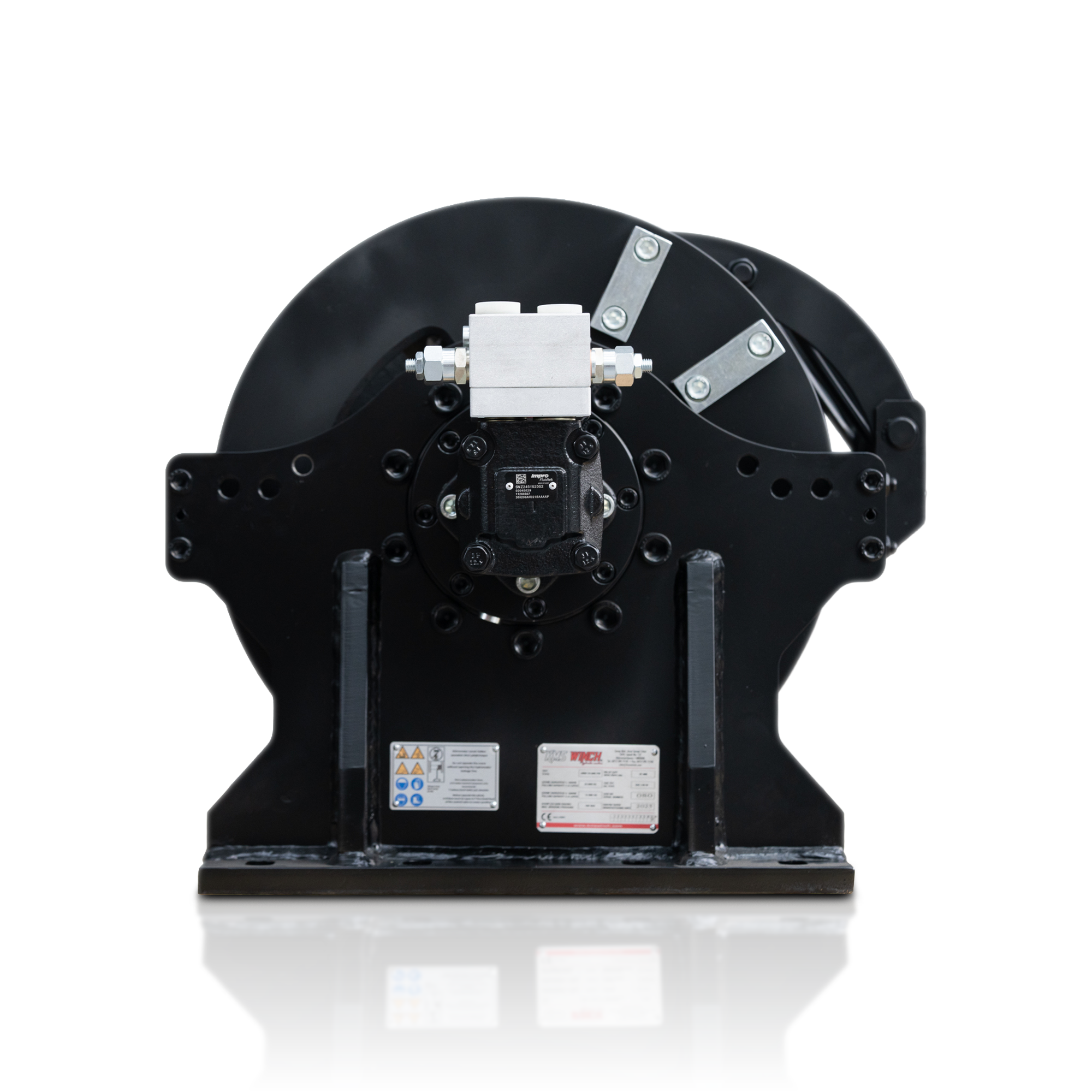

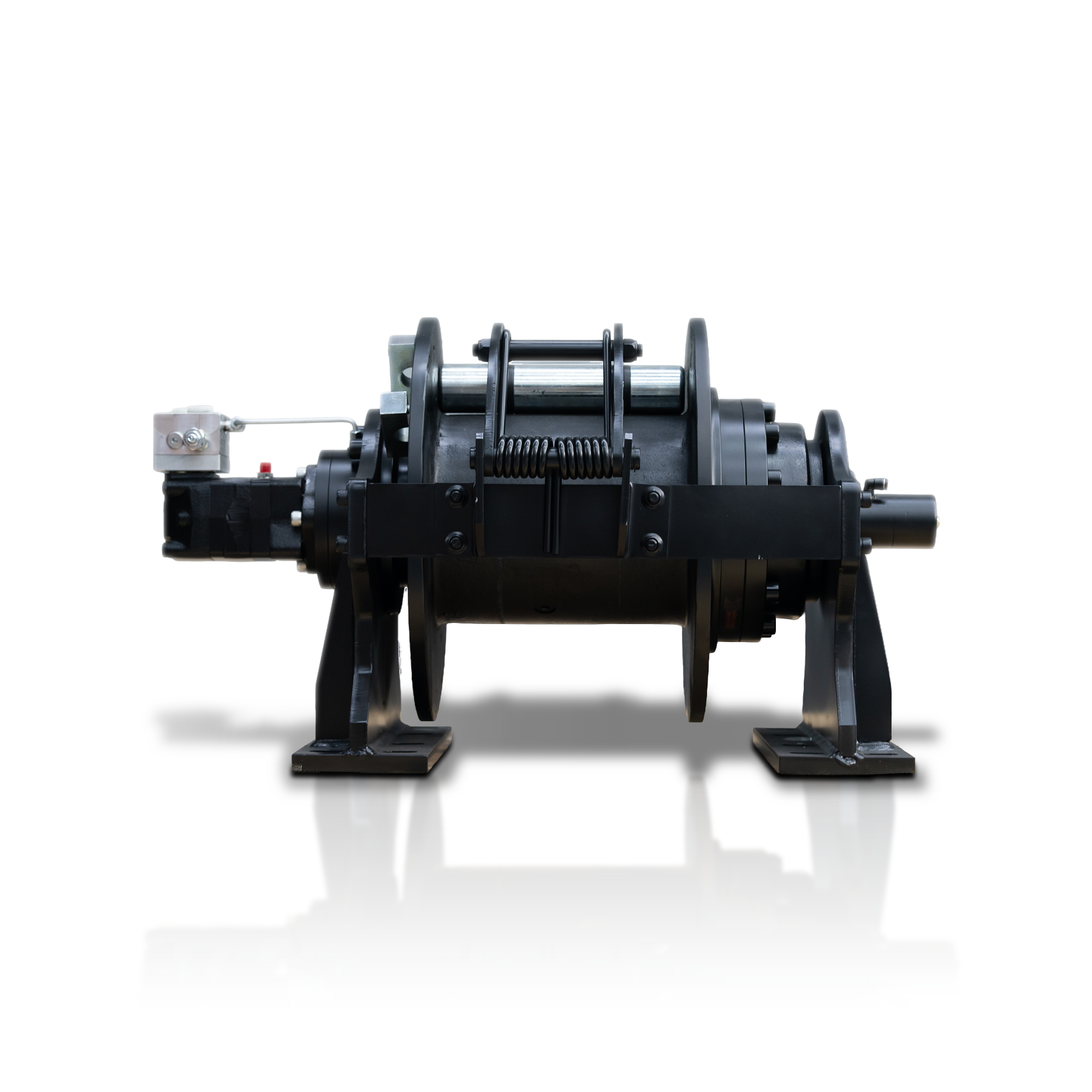

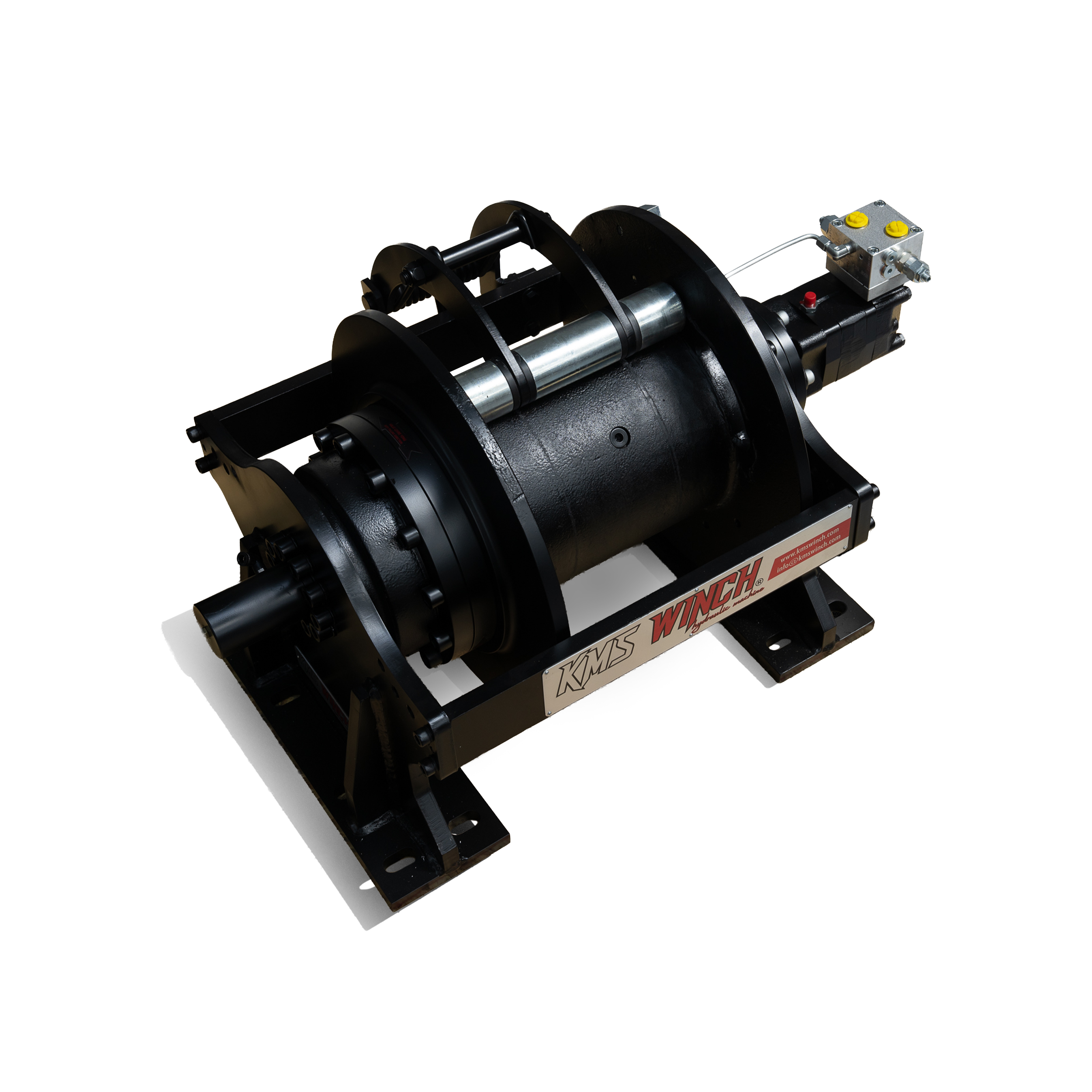

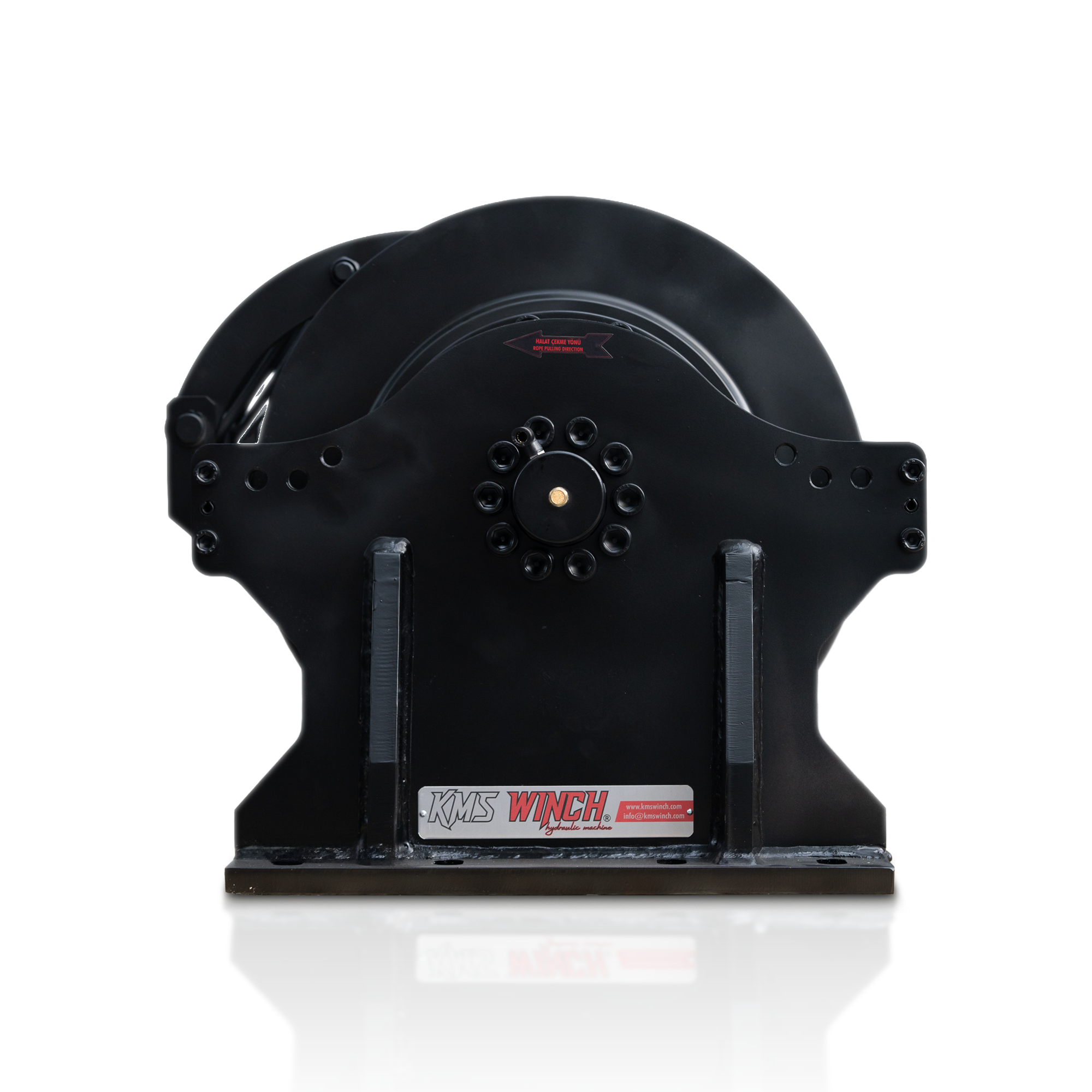

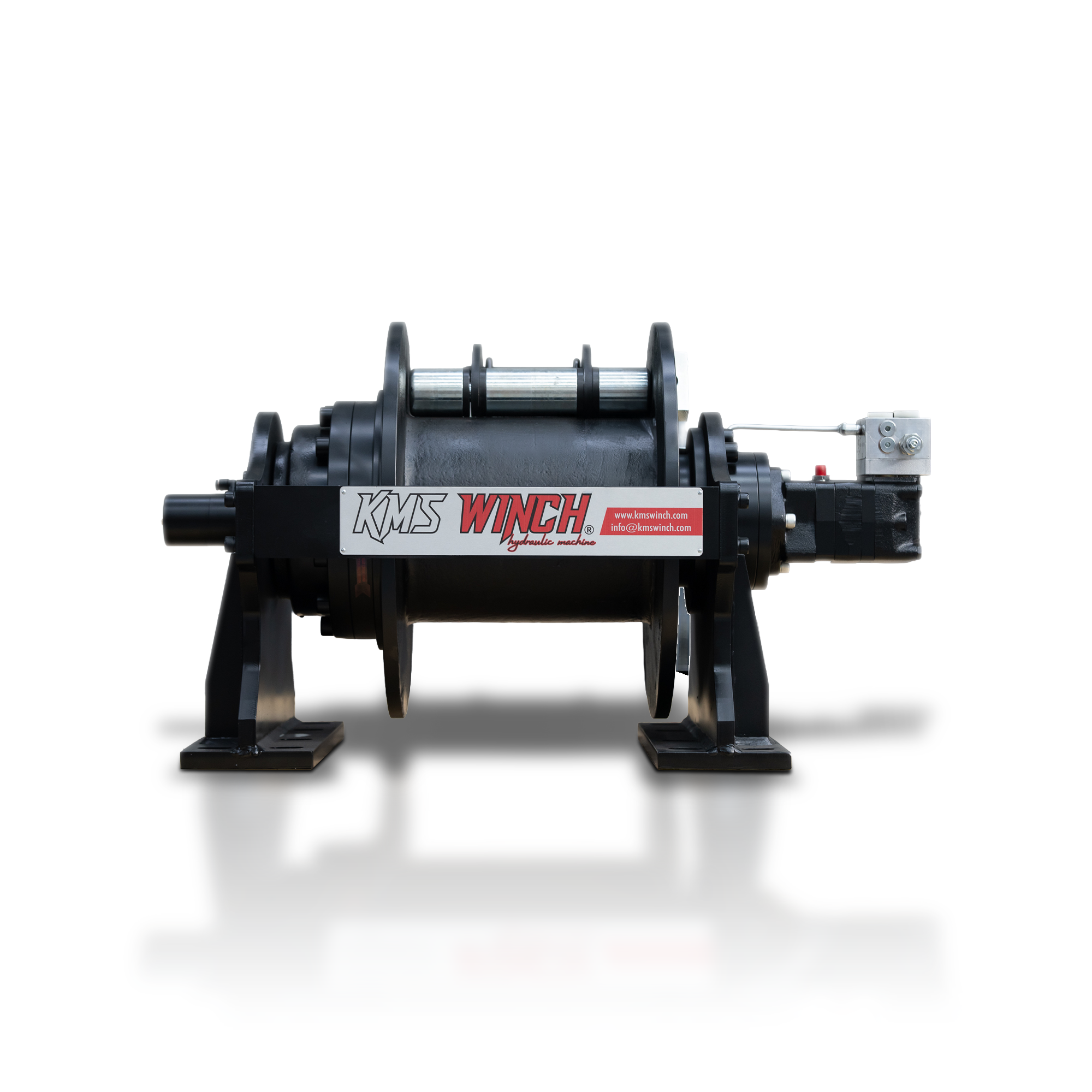

KMW 26.000 PW
EN 14492-1 COMPLIANT- High-strength, long-life steel construction.
- 3-stage planetary gearbox manufactured from special alloy steel and heat-treated for maximum strength and durability.
- Lightweight, compact and high-strength design.
- Hydraulic disc brake system capable of holding the rated load at 100%.
- Wire rope pressure roller for smooth and secure rope spooling.
- Pneumatic clutch system supplied as standard.
- High-torque hydraulic motor for maximum performance and efficiency.
- Epoxy primer and acrylic topcoat for superior corrosion and rust protection.
- Manufactured in compliance with the CE Machinery Directive 2006/42/EC.
- Designed and manufactured in accordance with EN 14492-1:2006 – Power Driven Winches
STANDARD
- Wire rope pressure roller
- Pneumatic clutch system
HYDRAULIC PORTS
G 1/2"
OPTIONAL
-
IP67 / IP68 protection class
-
Wire rope guide roller
-
Operator safety guard
-
Two-speed option
MOUNTING BOLTS
16 × M20 Grade 8.8 mounting bolts
Max. Pulling Force (kg / lbs)
26.000 kg (57200 lbs)
Max. Wire Rope Diameter (mm / in)
24 mm
Max. Wire Rope Capacity (m / ft)
60 m (196 ft)
Hydraulic Motor Displacement (cc / in³)
250 cc (125 in³)
Max. Pump Flow Rate (L/min)
75 L
Gear Ratio
74 : 1
Max. Operating Pressure (bar / psi)
190 bar (2755 psi)
Recommended Gear Oil
140 w - 4 L
Product Weight (kg / lbs)
300 kg (660 lbs)
| Wire Rope Layers |
Pulling Capacity (kg/lbs) |
Wire Rope Speed (m/min/ft/min) | Wire Rope Length (m/ ft) |
|---|---|---|---|
| 1 | 26000/57200 | 3.2/10.4 | 10.2/33.4 |
| 2 | 22130/48788 | 3.5/11.5 | 21.4/70.2 |
| 3 | 19260/42461 | 3.85/12.6 | 33.5/109.9 |
| 4 | 17040/37566 | 4.1/13.4 | 46.6/152.8 |
| 5 | 15290/33708 | 4.45/15.6 | 60/196 |
Pulling Capacity
(kg / lbs)| Wire Rope Speed
(m/min / ft/min)| Wire Rope Capacity
(m / ft)
