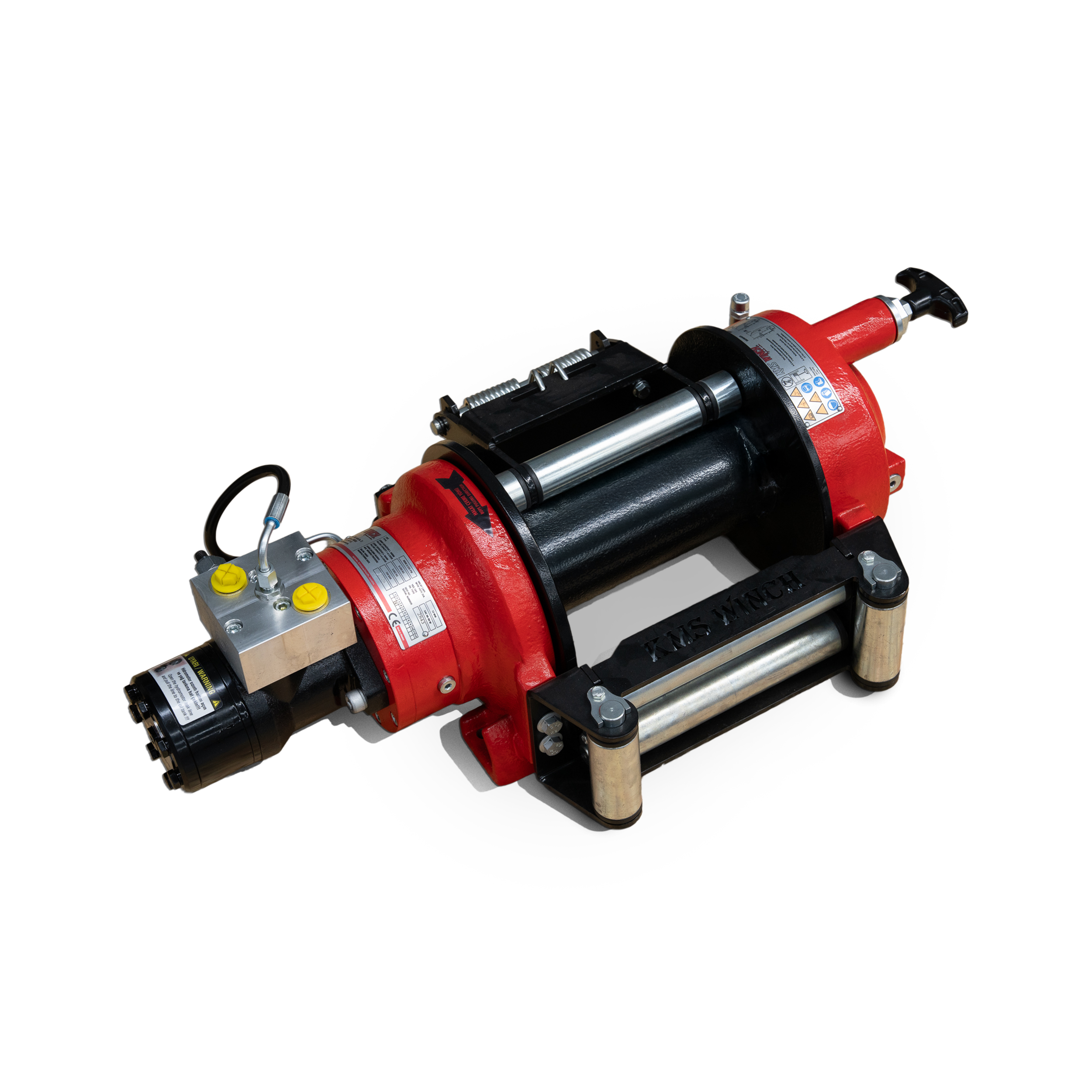

KMW 6.200 PW
EN 14492-1 COMPLIANT- High-strength, long-life steel construction.
- Planetary gearbox manufactured from special alloy steel and heat-treated for maximum strength and durability.
- Lightweight, compact and high-strength design.
- Hydraulic disc brake system capable of holding 100% of the rated load.
- Roller Fairlead and wire rope pressure roller supplied as standard.
- Manual clutch system supplied as standard.
- High-torque hydraulic motor for maximum performance and efficiency.
- Electrostatic powder coating for superior corrosion and rust resistance.
- Manufactured in compliance with the CE Machinery Directive 2006/42/EC.
- Designed and manufactured in accordance with EN 14492-1:2006 – Power Driven Winches
STANDARD
-
Wire Rope Pressure Roller
-
Roller Fairlead
-
Manual Clutch System
HYDRAULIC PORTS
G 1/2"
OPTIONAL
- IP67 / IP68 Protection Rating
- Pneumatic Clutch System
MOUNTING BOLTS
16 × M12 Grade 8.8 Mounting Bolts
Max. Pulling Force (kg / lbs)
6.200 kg (13640 lbs)
Max. Wire Rope Diameter (mm / in)
12 mm (1/2”)
Max. Wire Rope Capacity (m / ft)
46 m (151 ft)
Hydraulic Motor Displacement (cc / in³)
250 cc (15 in³)
Max. Pump Flow Rate (L/min)
60 L
Gear Ratio
6 : 1
Max. Operating Pressure (bar / psi)
195 bar (2828 psi)
Recommended Gear Oil
80 w 90 - 0.75 L
Product Weight (kg / lbs)
76 kg (167 lbs)
| Wire Rope Layers | Pulling Capacity(kg/lbs) | Wire Rope Speed (m/min/ft/min) | Wire Rope Length (m / ft) |
|---|---|---|---|
| 1 | 6200/13640 | 14.3/46.9 | 7.6/24.9 |
| 2 | 5255/11560 | 15.8/51.8 | 16/52.5 |
| 3 | 4534/9975 | 17.3/56.7 | 25.2/55.4 |
| 4 | 3987/8771 | 18.8/61.6 | 35.2/115.4 |
| 5 | 3558/7827 | 20.3/66.5 | 46/151 |
Pulling Capacity
(kg / lbs)| Wire Rope Speed
(m/min / ft/min)| Wire Rope Capacity
(m / ft)
