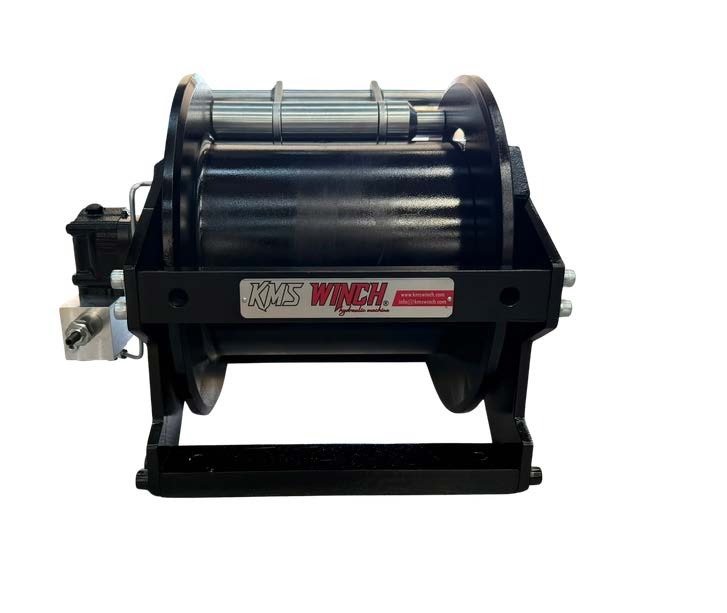

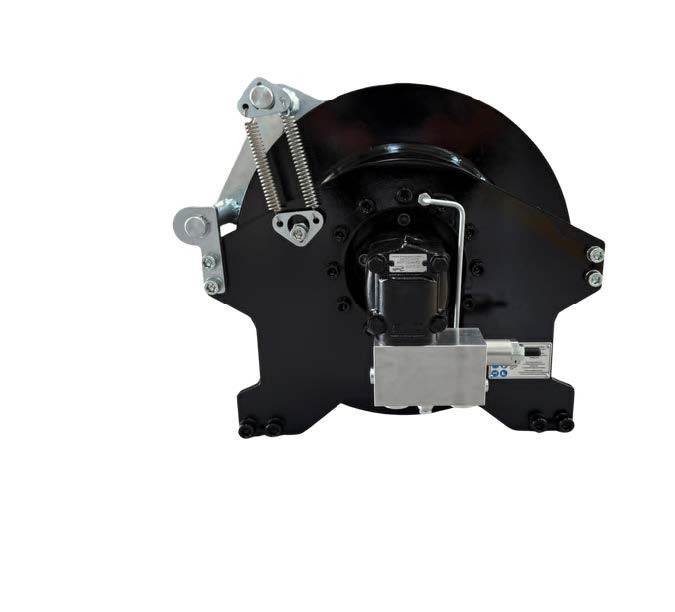

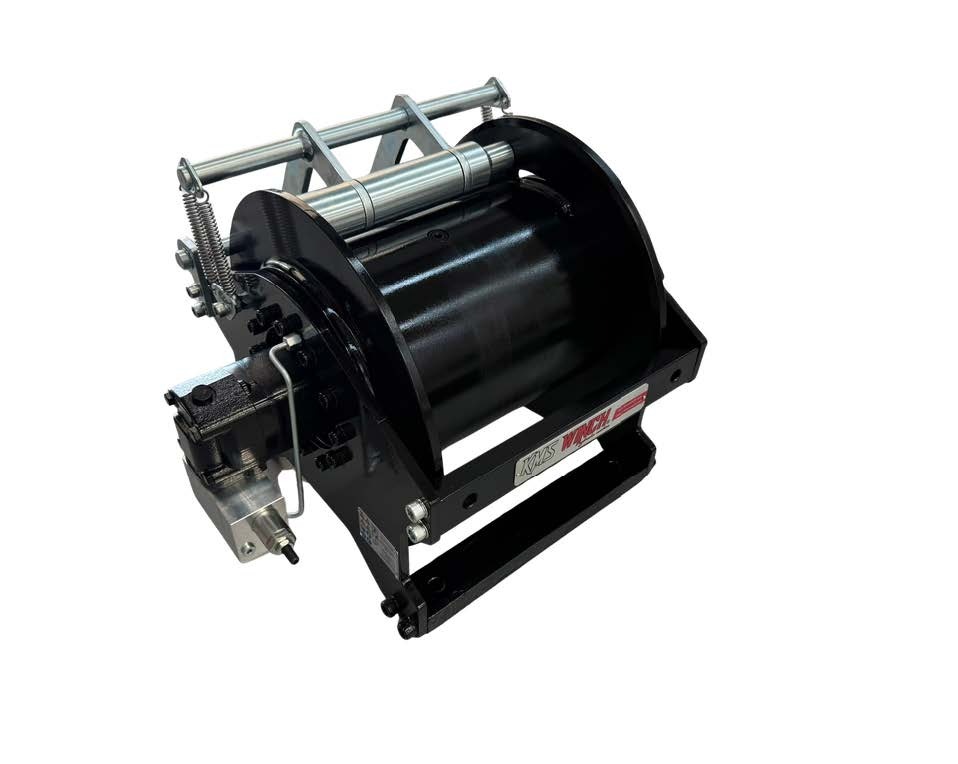

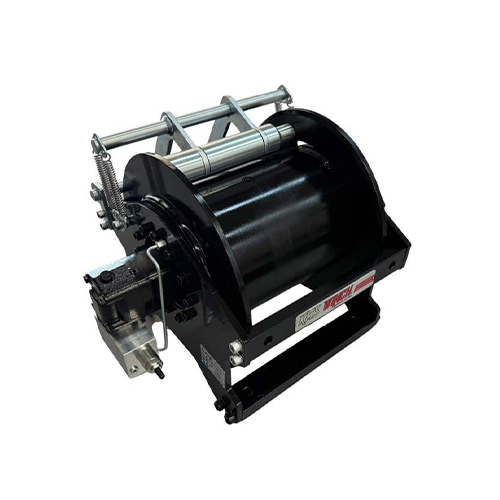

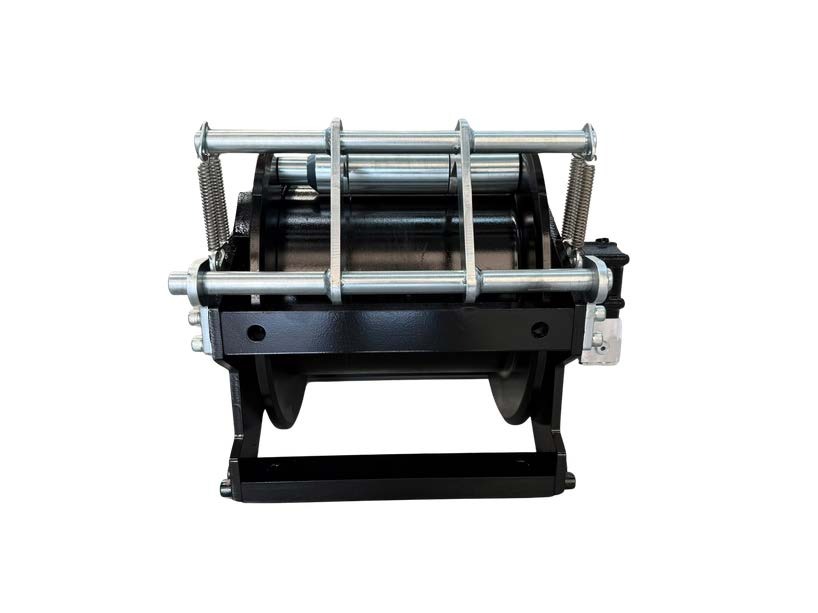

KMW 3.500 P-KW
EN 14492-1 COMPLIANT- High-strength, long-lasting steel housing
- Planetary gear system made of special steel, heat-treated and extra reinforced
- Light weight and robust design
- Hydraulic disc brake system with 100% load holding capacity
- Cable Tensioner
- High rope capacity
- High-torque hydraulic motor
- CE Machinery Directive 2006/42/EC
- EN 14492-1:2006 Power driven winches supported
STANDARD
Cable Tensioner
HYDRAULIC INLETS
G 3/4"
OPTIONAL
IP67-IP681
1 Micro Switch
MOUNTING BOLTS
4 pieces M16 8.8-K
Max. Hoisting Force kg/lbs
3.500 kg (7716 lbs)
Max. Rope Diameter (mm/in)
14 mm
Max. Rope Length (m-ft)
115 m (377 ft)
Hydromotor (cc/in³)
315 cc
Max. Pump Flow
75 L
Gear Ratio
6.5:1
Max. Working Pressure (bar/psi)
210 bar (3045 psi)
Recommended Gear Oil
80-90 w2 L
Product Weight
205 kg (452 lbs)
| Rope Winding Number | Hoisting Capacity (kg/lbs) | Rope Winding Speed (mt-min/ft-min) | Rope Length (m/ft) |
|---|---|---|---|
| 1 | 3500/7716 | 32/104 | 19.3/63.3 |
| 2 | 3208/7072 | 33.7/110.5 | 40.5/132.8 |
| 3 | 2951/6505 | 35.3/115.8 | 63.7/208.9 |
| 4 | 2733/6025 | 36.9/121 | 88.7/291 |
| 5 | 2544/5608 | 38.5/126 | 115/377 |
Hoisting Capacity
kg/lbRope Speed
m/min-ft/minRope Length
m/ft
