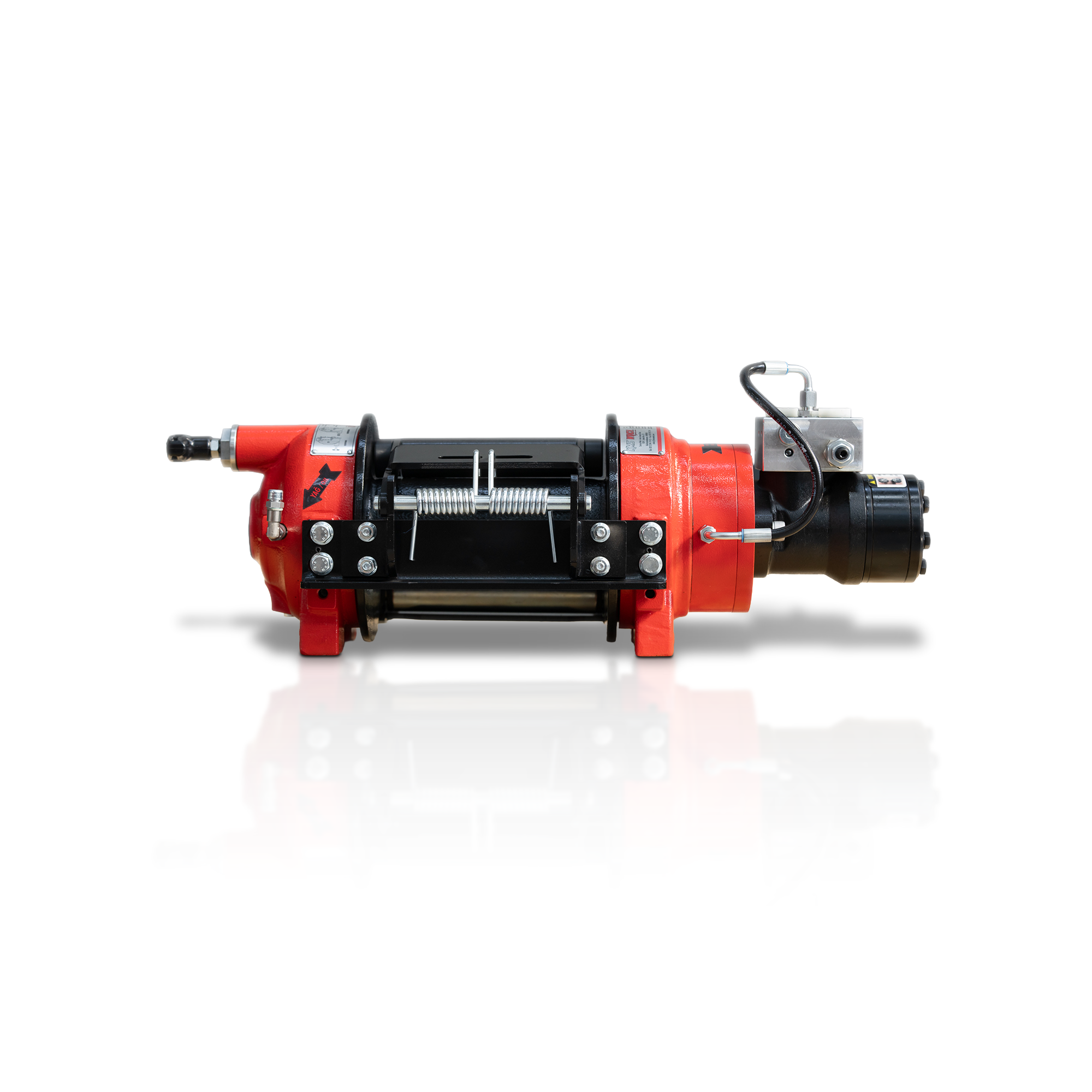

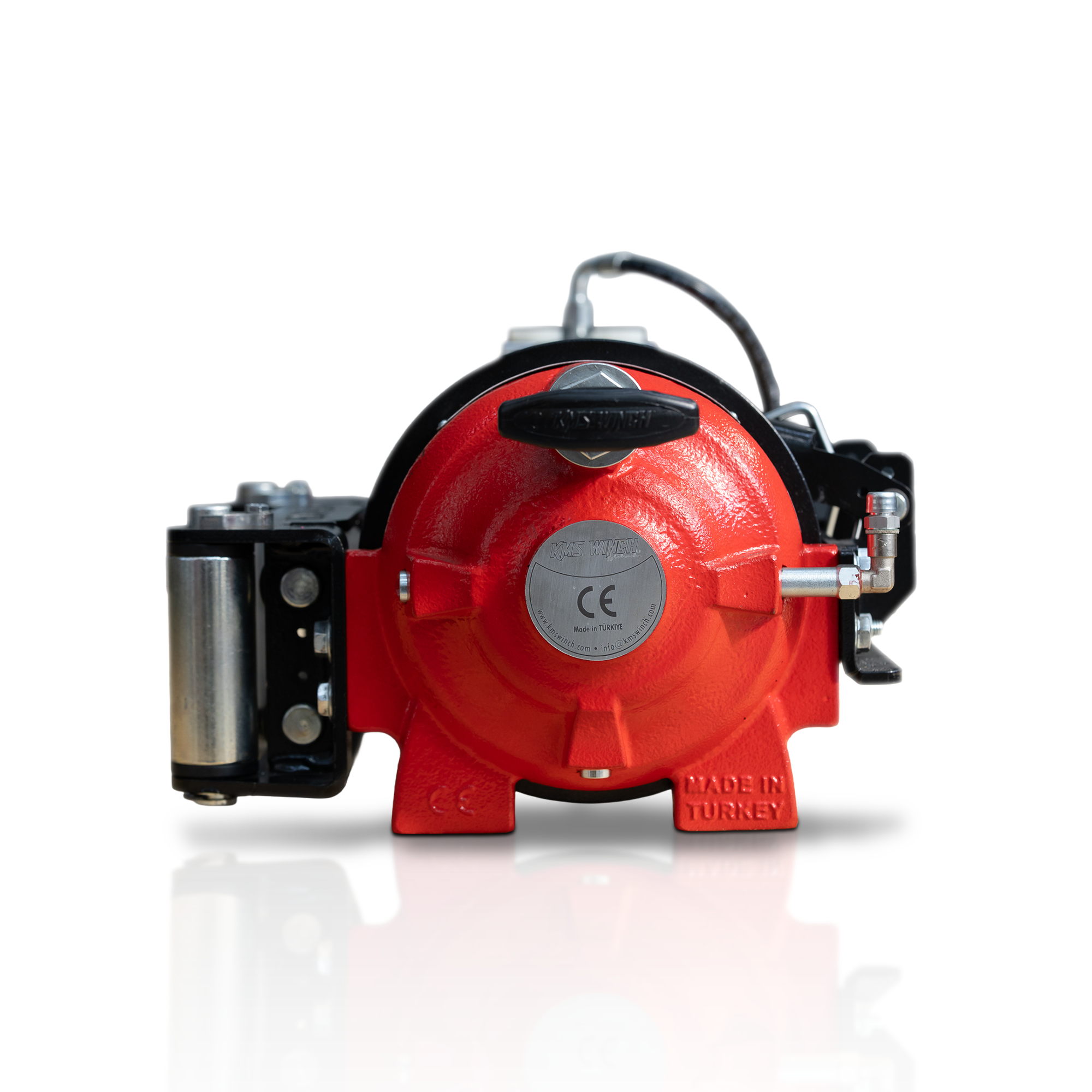

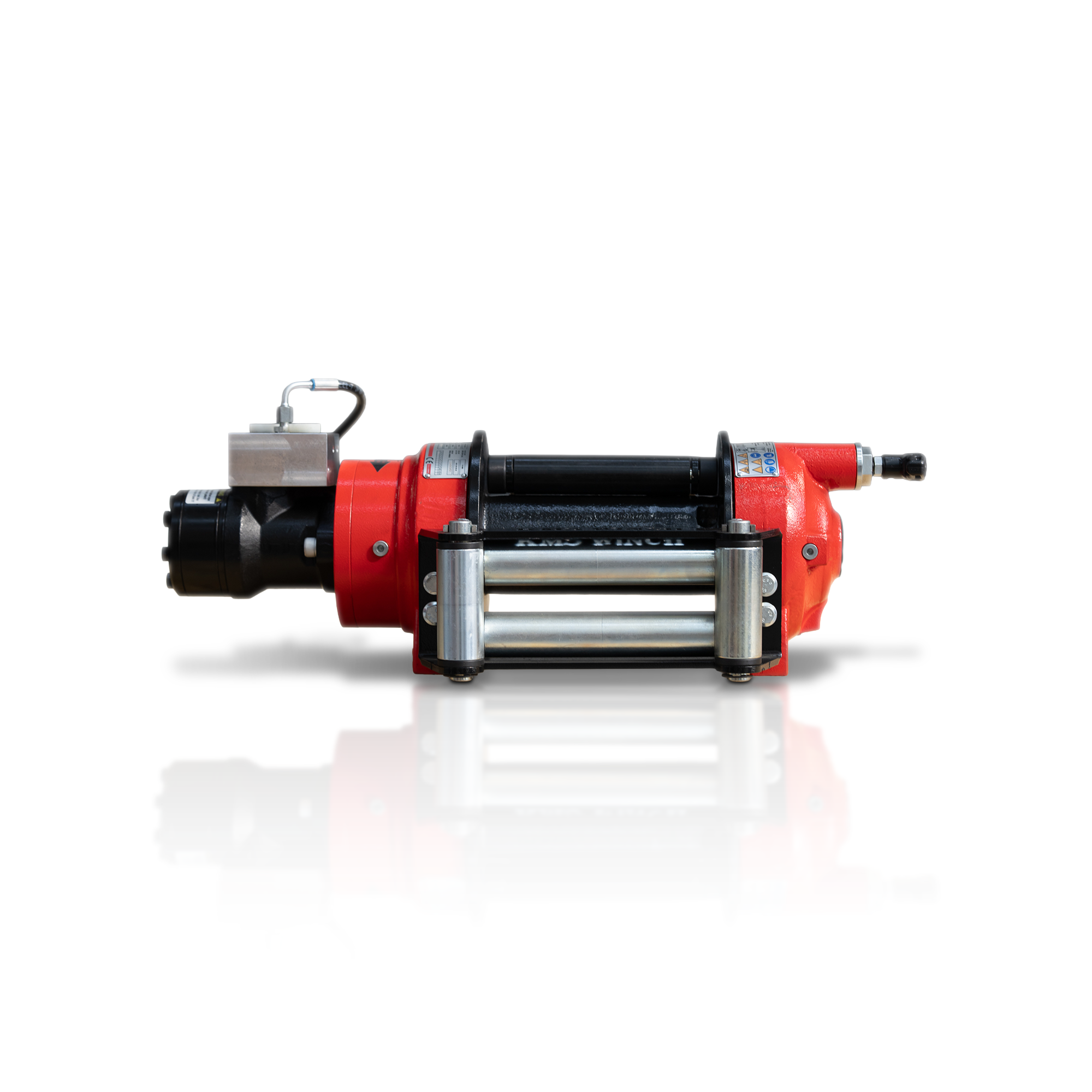

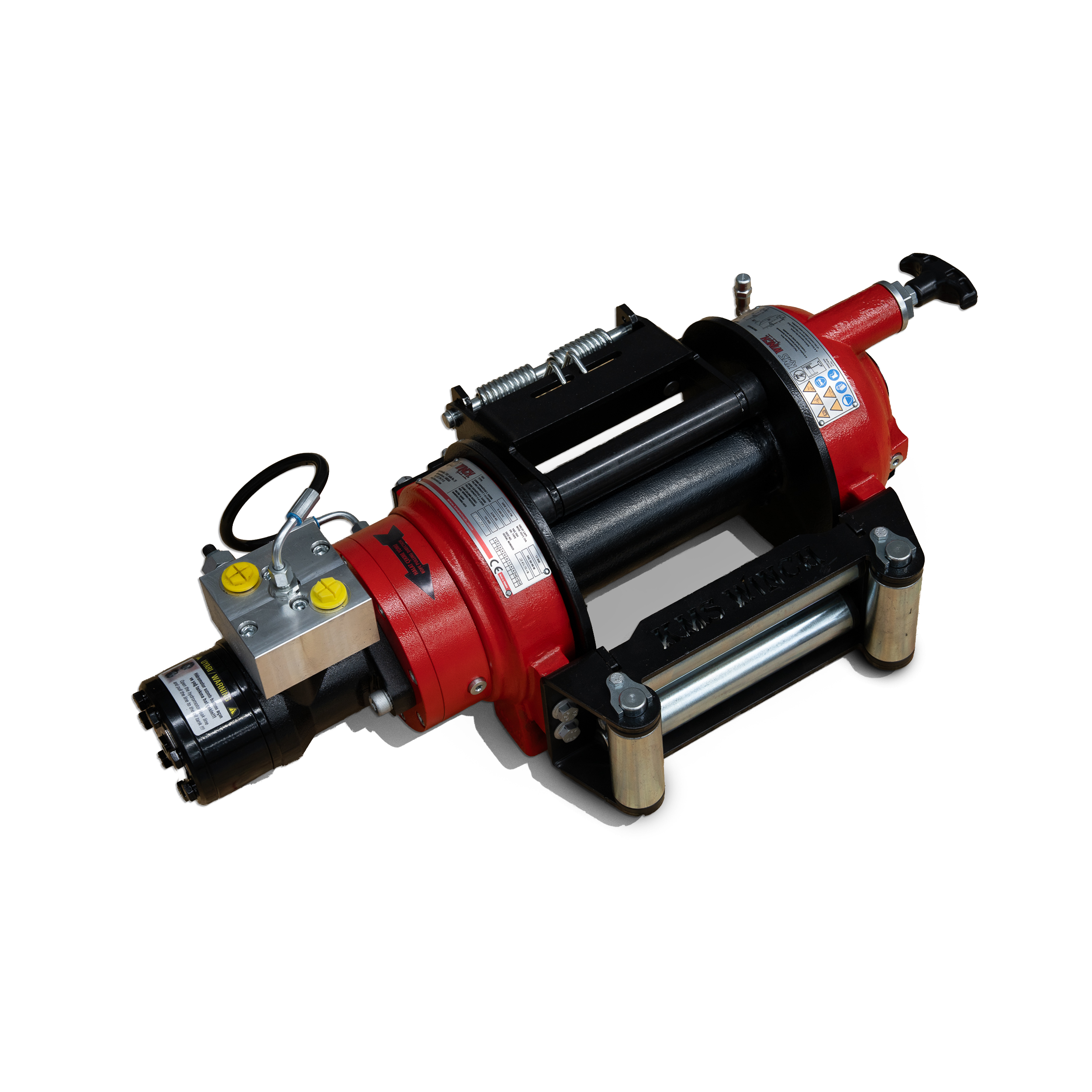

KMW 5.400 PW
EN 14492-1 COMPLIANT- High-strength, long-life steel construction.
- Planetary gearbox manufactured from special alloy steel and heat-treated for maximum strength and durability.
- Lightweight, compact and high-strength design.
- Hydraulic disc brake system capable of holding 100% of the rated load.
- Roller Fairlead and wire rope pressure roller supplied as standard.
- Manual clutch system supplied as standard.
- High-torque hydraulic motor for maximum performance and efficiency.
- Electrostatic powder coating for superior corrosion and rust resistance.
- Manufactured in compliance with the CE Machinery Directive 2006/42/EC.
- Designed and manufactured in accordance with EN 14492-1:2006 – Power Driven WinchesD
STANDARD
-
Wire Rope Pressure Roller
-
Roller Fairlead
-
Manual Clutch System
HYDRAULIC PORTS
G 1/2"
OPTIONAL
- IP67 / IP68 Protection Rating
- Pneumatic Clutch System
MOUNTING BOLTS
8 × M12 Grade 8.8 Mounting Bolts
Max. Pulling Force (kg / lbs)
5.400 kg (11880 lbs)
Max. Wire Rope Diameter (mm / in)
12 mm (1/2”)
Max. Wire Rope Capacity (m / ft)
35 m (114 ft)
Hydraulic Motor Displacement (cc / in³)
250 cc (15 in³)
Max. Pump Flow Rate (L/min)
60 L
Gear Ratio
5 : 1
Max. Operating Pressure (bar / psi)
170 bar (2465 psi)
Recommended Gear Oil
80 w 90 - 0.75 L
Product Weight (kg / lbs)
62 kg (136 lbs)
| Wire Rope Layers | Pulling Capacity(kg/lbs) | Wire Rope Speed (m/min/ft/min) | Wire Rope Length (m / ft) |
|---|---|---|---|
| 1 | 5400/11880 | 13.9/45.6 | 5.8/19 |
| 2 | 4468/9830 | 15.7/51.5 | 12.2/40 |
| 3 | 3767/8287 | 17.5/57.4 | 19.3/63 |
| 4 | 3256/7163 | 19.3/63.3 | 27.1/89 |
| 5 | 2867/6308 | 21/68.9 | 35/114 |
Pulling Capacity (kg / lbs)| Wire Rope Speed (m/min / ft/min)| Wire Rope Capacity (m / ft)
