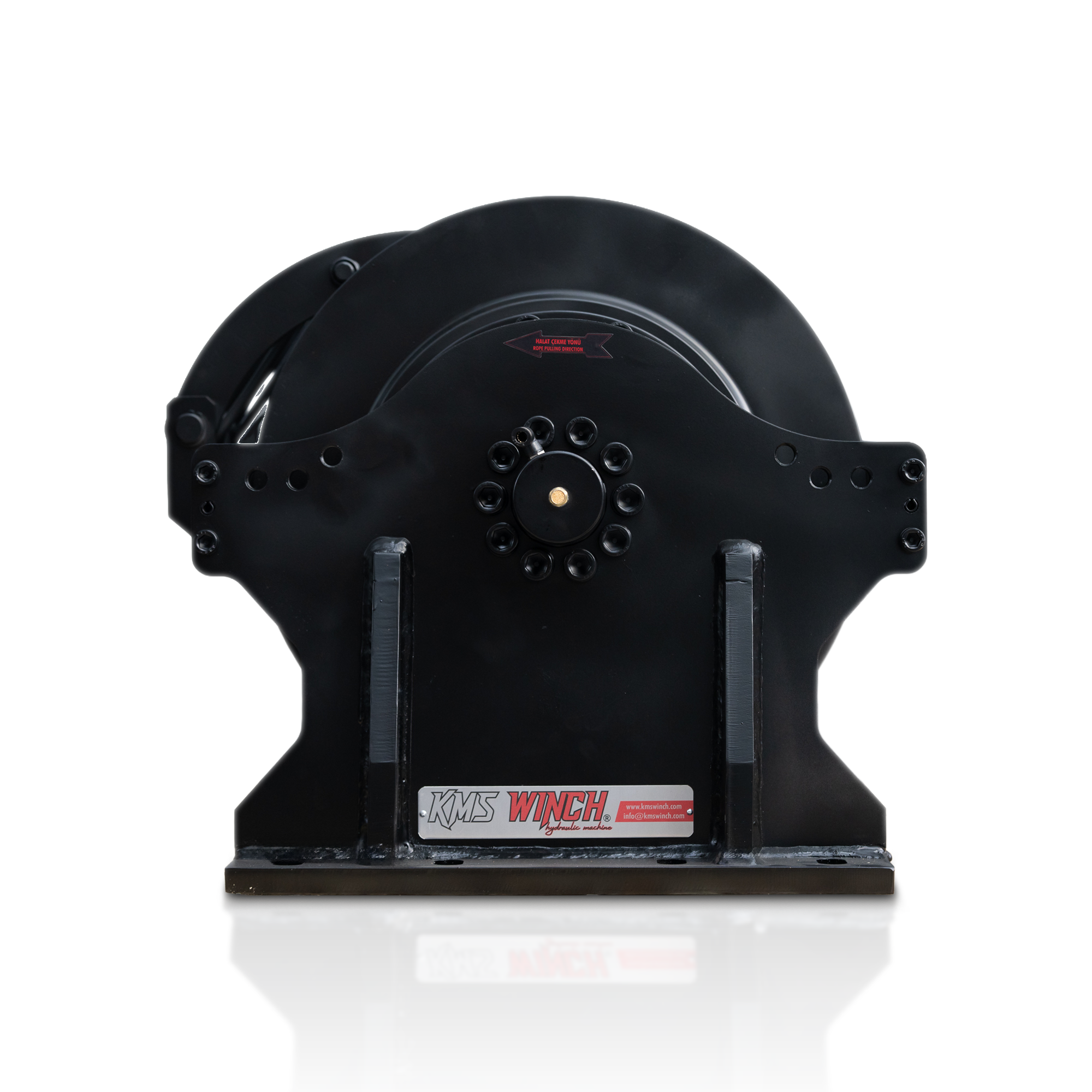

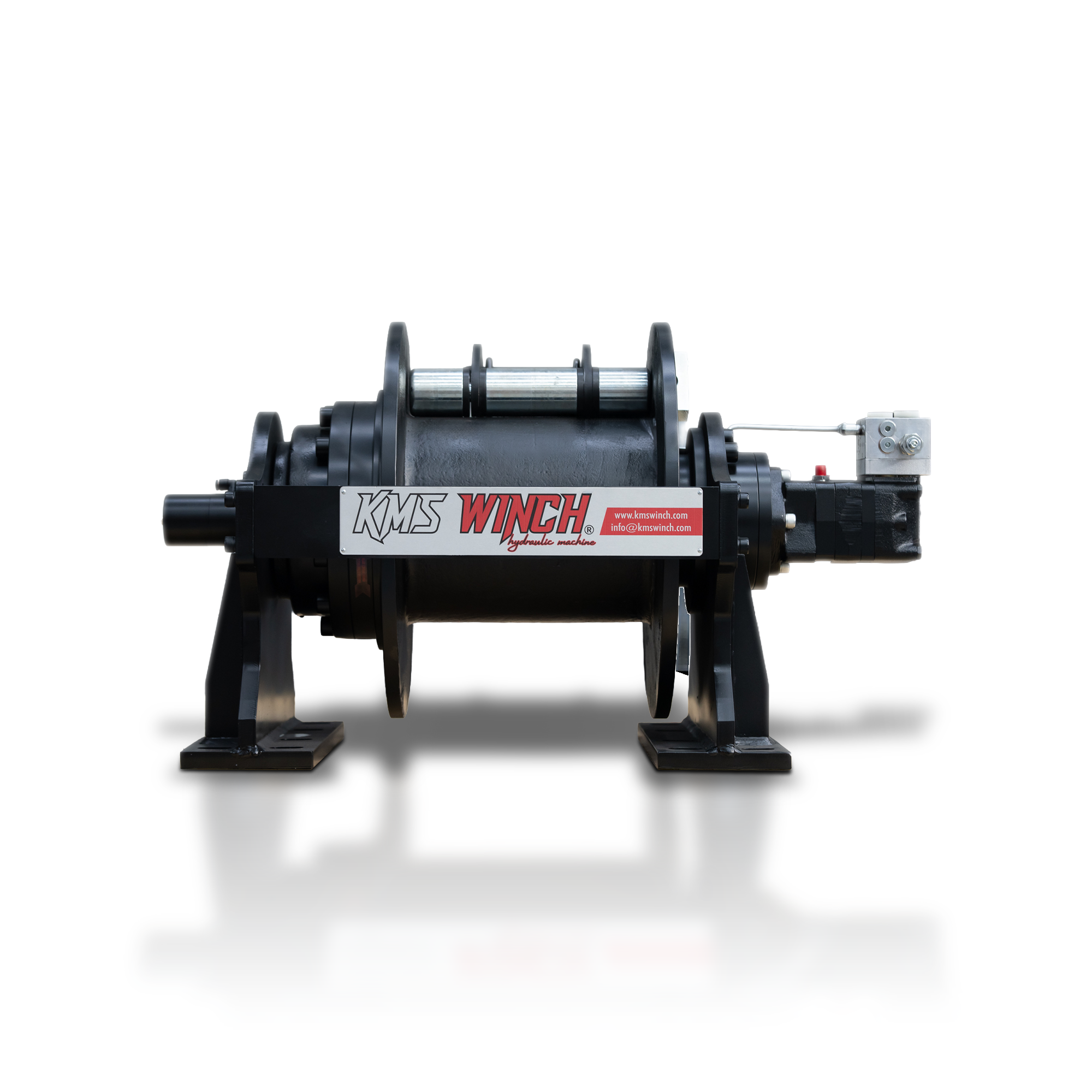

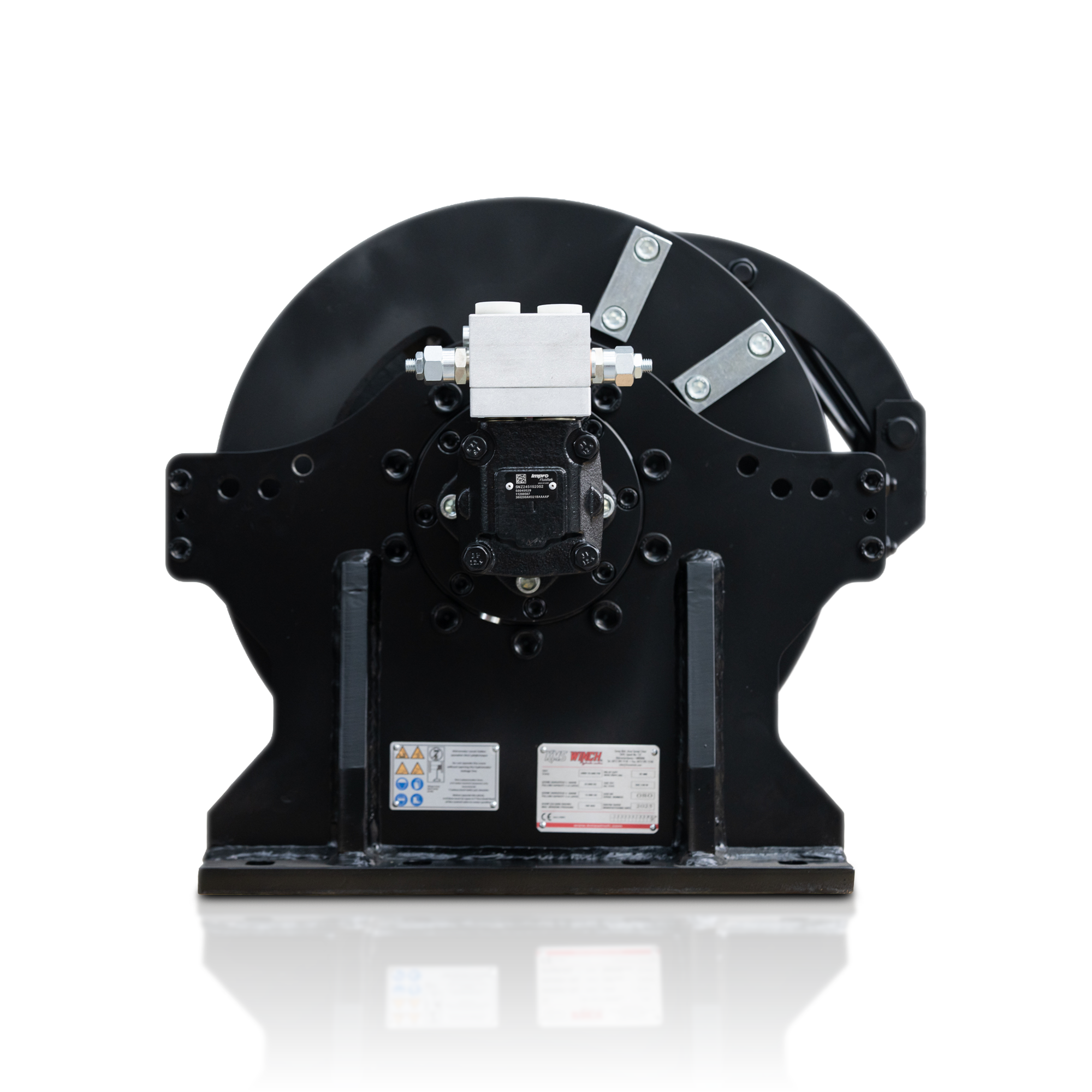

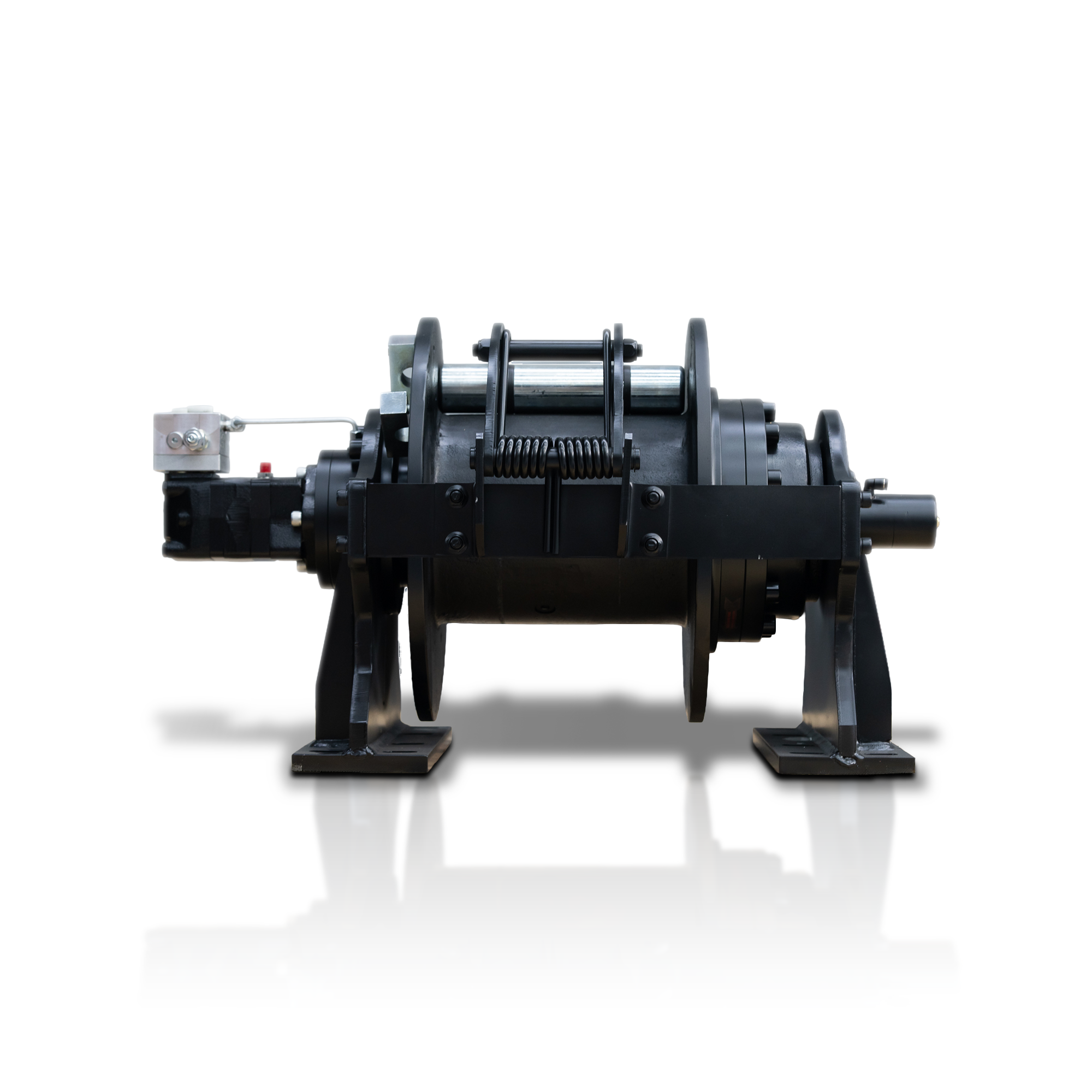

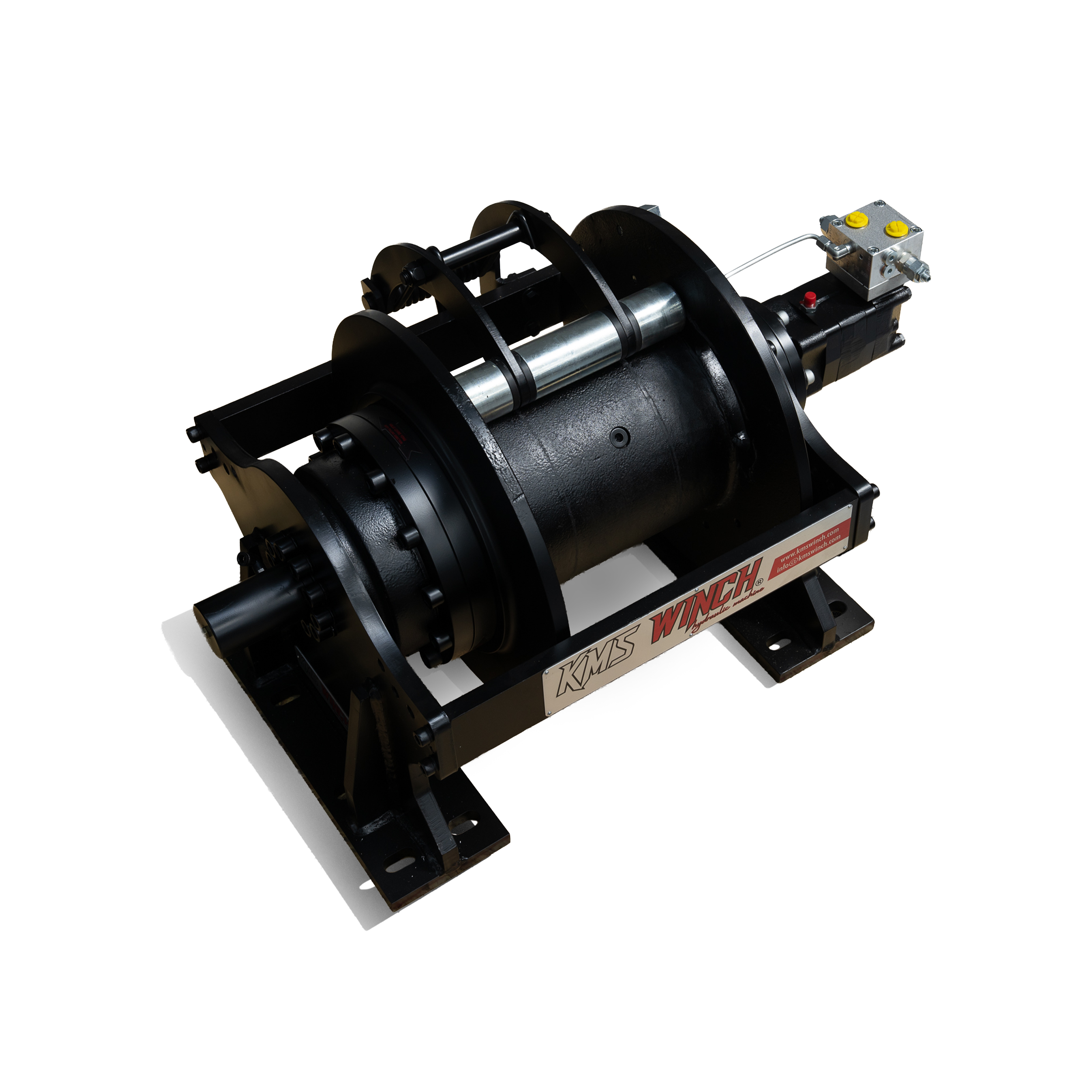

KMW 22.000 PW
EN 14492-1 COMPLIANT- High-strength, long-life steel construction.
- 3-stage planetary gearbox manufactured from special alloy steel and heat-treated for maximum strength and durability.
- Lightweight, compact and high-strength design.
- Hydraulic disc brake system capable of holding the rated load at 100%.
- Wire rope pressure roller for smooth and secure rope spooling.
- Pneumatic clutch system supplied as standard.
- High-torque hydraulic motor for maximum performance and efficiency.
- Epoxy primer and acrylic topcoat for superior corrosion and rust protection.
- Manufactured in compliance with the CE Machinery Directive 2006/42/EC.
- Designed and manufactured in accordance with EN 14492-1:2006 – Power Driven Winches.
STANDARD
- Wire rope pressure roller
- Pneumatic clutch system
HYDRAULIC PORTS
G 1/2"
OPTIONAL
-
IP67 / IP68 protection class
-
Wire rope guide roller
-
Operator safety guard
-
Two-speed option
MOUNTING BOLTS
16 × M20 Grade 8.8 mounting bolts
Max. Pulling Force (kg / lbs)
22.000 kg (48400 lbs)
Max. Wire Rope Diameter (mm / in)
22 mm (7.8")
Max. Wire Rope Capacity (m / ft)
65 m (213 ft)
Hydraulic Motor Displacement (cc / in³)
200 cc (12 in³)
Max. Pump Flow Rate (L/min)
75 L
Gear Ratio
74 : 1
Max. Operating Pressure (bar / psi)
190 bar (2755 psi)
Recommended Gear Oil
140 w - 4 L
Product Weight (kg / lbs)
296 kg (651 lbs)
|
Wire Rope Layers |
Pulling Capacity (kg/lbs) |
Wire Rope Speed (m/min/ft/min) |
Wire Rope Length (m / ft) |
|---|---|---|---|
| 1 | 22000/48400 | 4.04/13.2 | 11.1/36.4 |
| 2 | 19000/41887 | 4.4/14.4 | 23.2/76.1 |
| 3 | 16730/36883 | 4.7/15.4 | 36.2/118.7 |
| 4 | 14900/32848 | 5.1/16.7 | 50/164 |
| 5 | 13440/29630 | 5.4/17.7 | 65/213 |
Pulling Capacity
(kg / lbs) | Wire Rope Speed
(m/min / ft/min)| Wire Rope Capacity
(m / ft)
