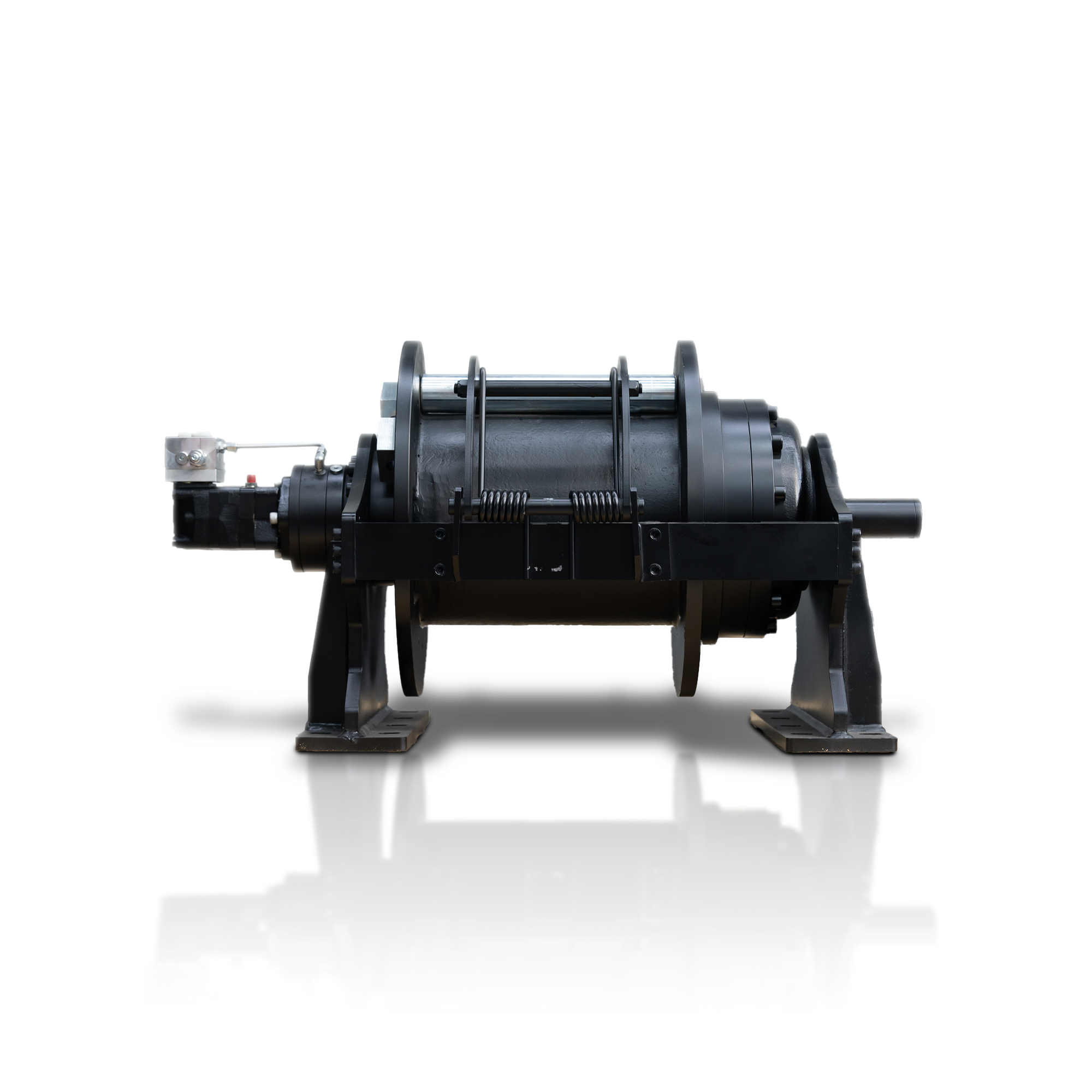

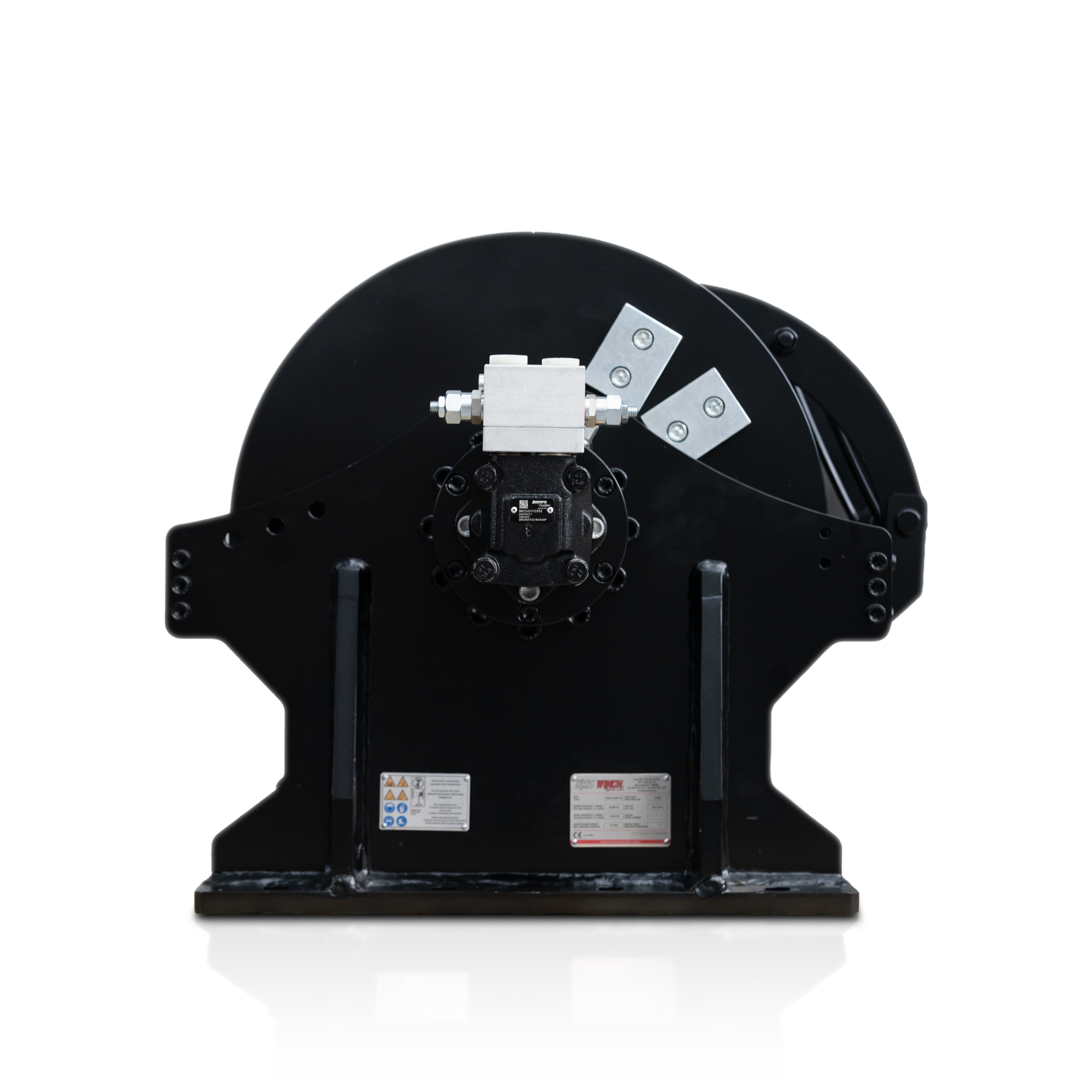

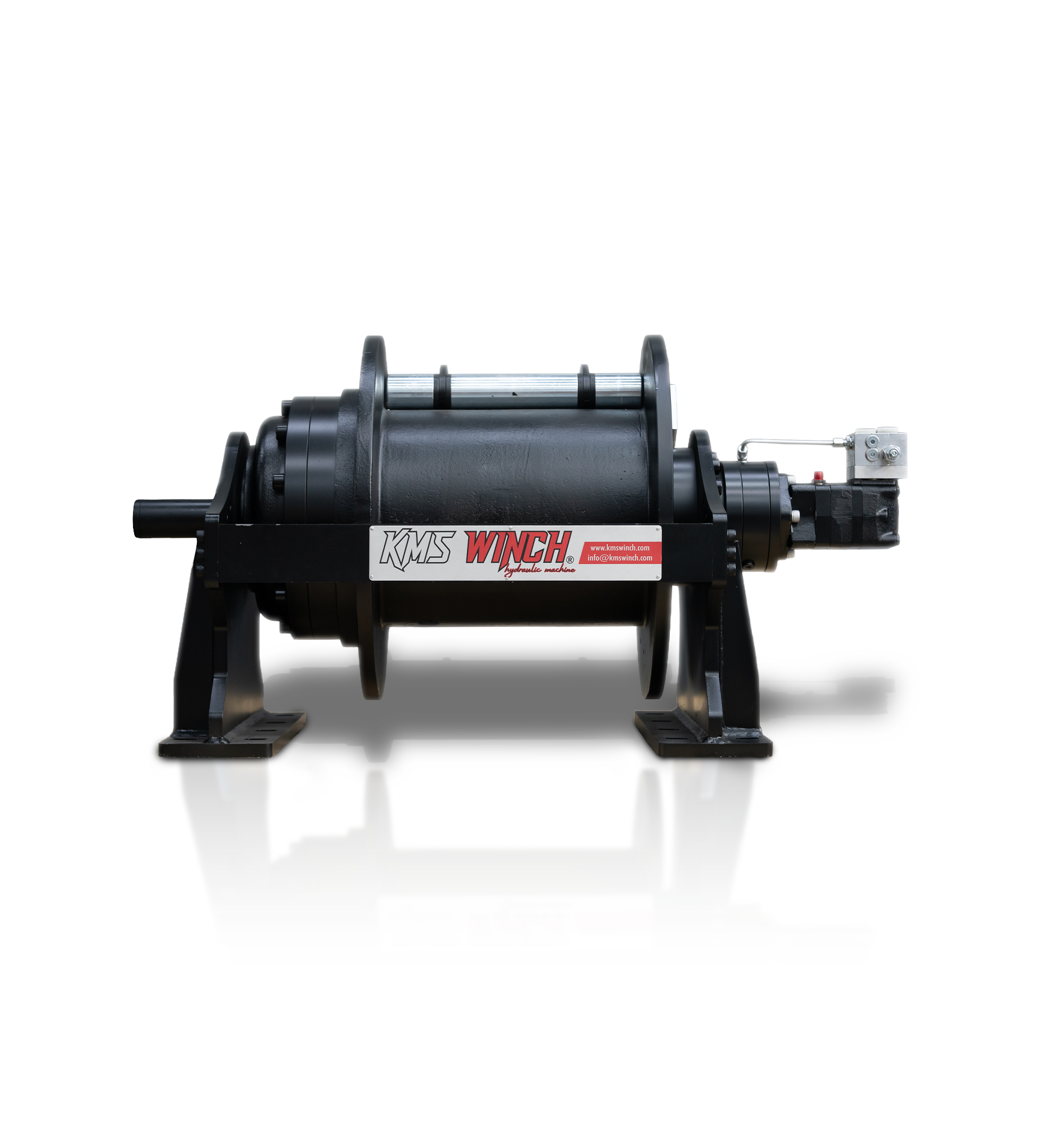

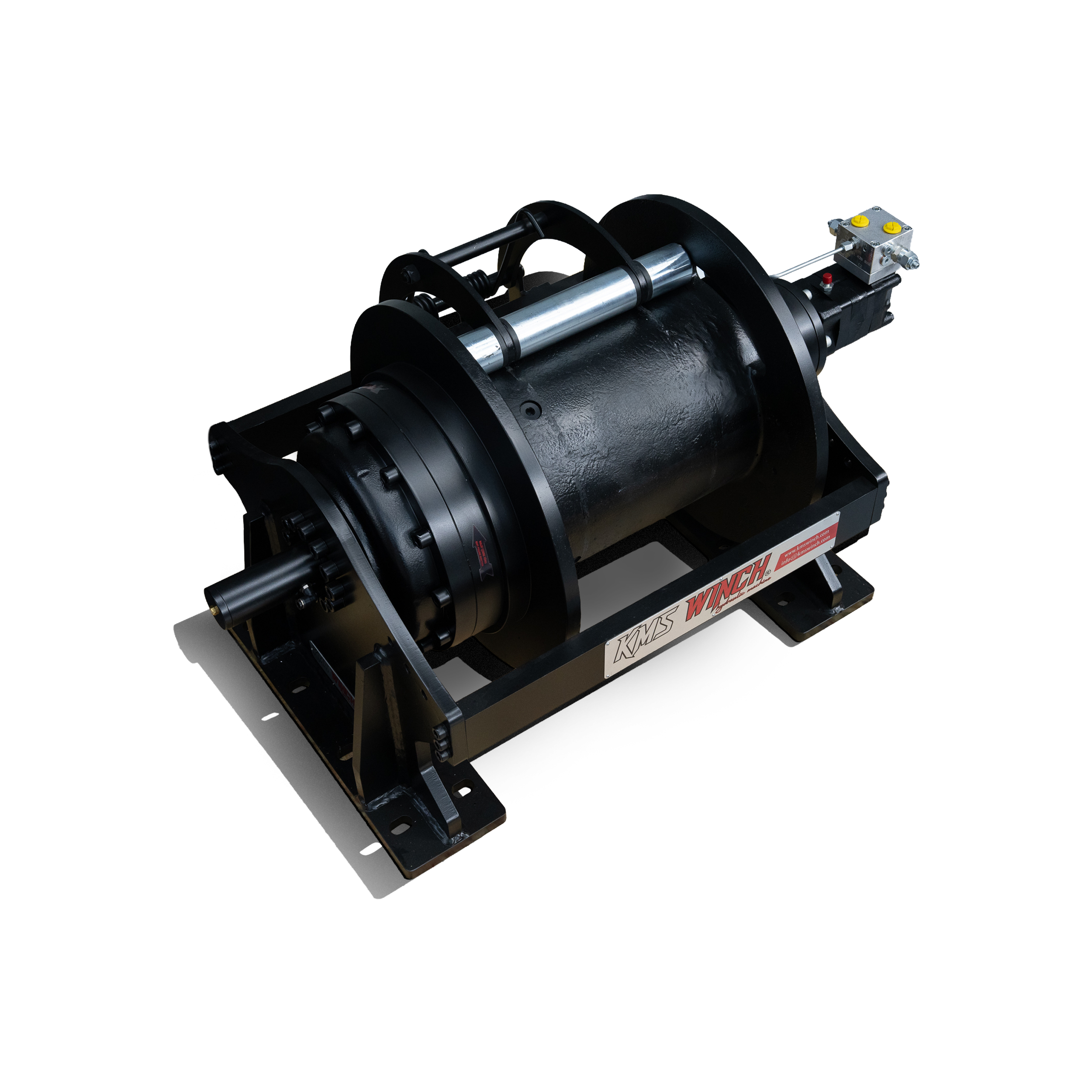

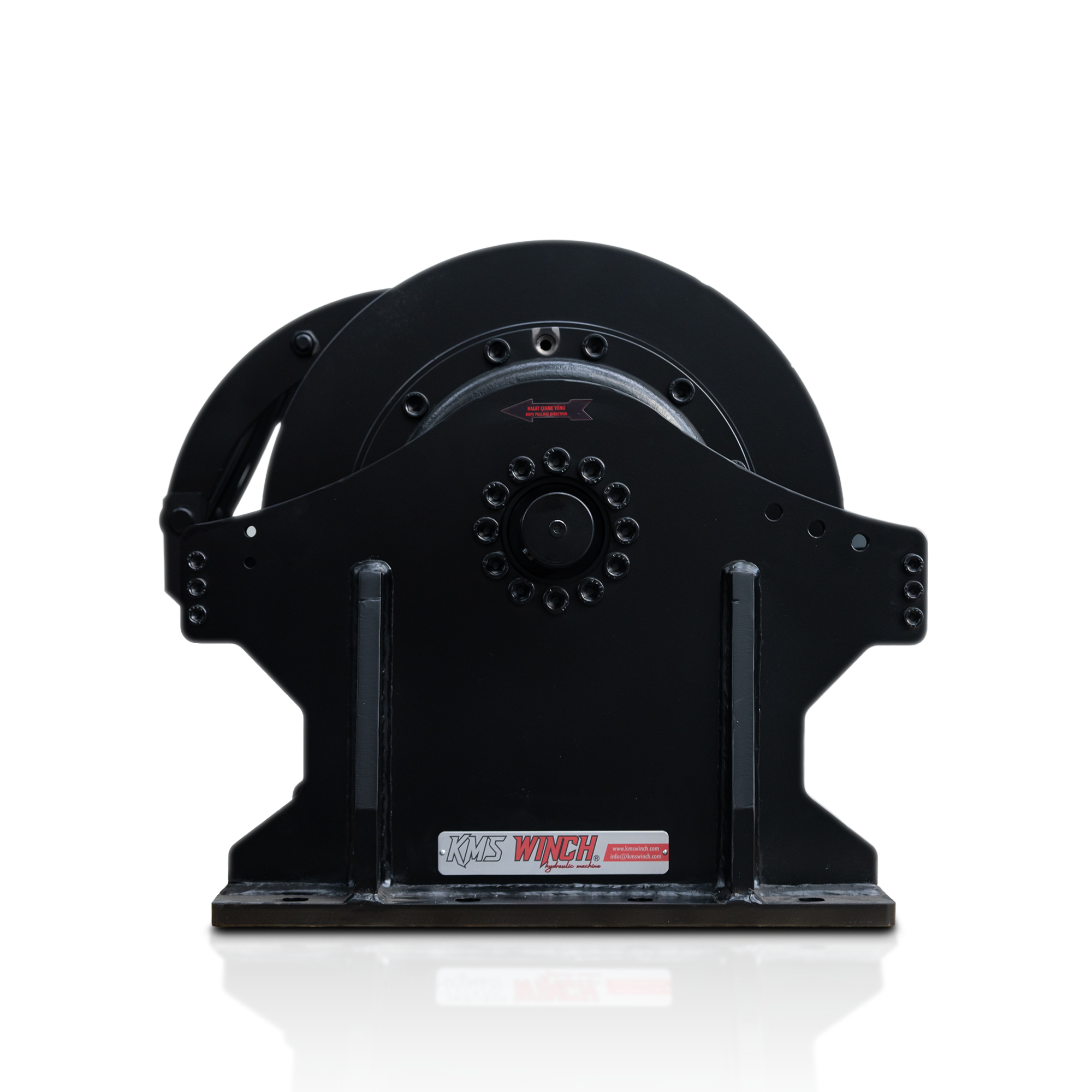

KMW 40.000 PW
EN 14492-1 COMPLIANT- High-strength, long-life steel construction.
- 3-stage planetary gearbox manufactured from special alloy steel and heat-treated for maximum strength and durability.
- Lightweight, compact and high-strength design.
- Hydraulic disc brake system capable of holding the rated load at 100%.
- Wire rope pressure roller for smooth and secure rope spooling.
- Pneumatic clutch system supplied as standard.
- High-torque hydraulic motor for maximum performance and efficiency.
- Epoxy primer and acrylic topcoat for superior corrosion and rust protection.
- Manufactured in compliance with the CE Machinery Directive 2006/42/EC.
- Designed and manufactured in accordance with EN 14492-1:2006 – Power Driven Winches.
STANDARD
- Wire rope pressure roller
- Pneumatic clutch system
HYDRAULIC PORTS
G 1/2"
OPTIONAL
-
IP67 / IP68 protection class
-
Wire rope guide roller
-
Operator safety guard
-
Two-speed option
MOUNTING BOLTS
16 × M20 Grade 8.8 mounting bolts
Max. Pulling Force (kg / lbs)
40.000 kg (88000 lbs)
Max. Wire Rope Diameter (mm / in)
28 mm (10.9")
Max. Wire Rope Capacity (m / ft)
70 m (229 ft)
Hydraulic Motor Displacement (cc / in³)
250 cc (15 in³)
Max. Pump Flow Rate (L/min)
75 L
Gear Ratio
150 : 1
Max. Operating Pressure (bar / psi)
190 bar (2755 psi)
Recommended Gear Oil
140 w - 4 L
Product Weight (kg / lbs)
530 kg (1166 lbs)
| Wire Rope Layers | Pulling Capacity(kg/lbs) | Wire Rope Speed (m/min/ft/min) | Wire Rope Length (m / ft) |
|---|---|---|---|
| 1 | 40000/88000 | 2/6.5 | 15.4/50.5 |
| 2 | 34645/76379 | 2.3/7.5 | 32.1/105 |
| 3 | 30517/67278 | 2.5/8.2 | 50/164 |
| 4 | 2768/60115 | 2.7/8.8 | 70/229 |
Pulling Capacity
(kg / lbs)| Wire Rope Speed
(m/min / ft/min)| Wire Rope Capacity
(m / ft)
